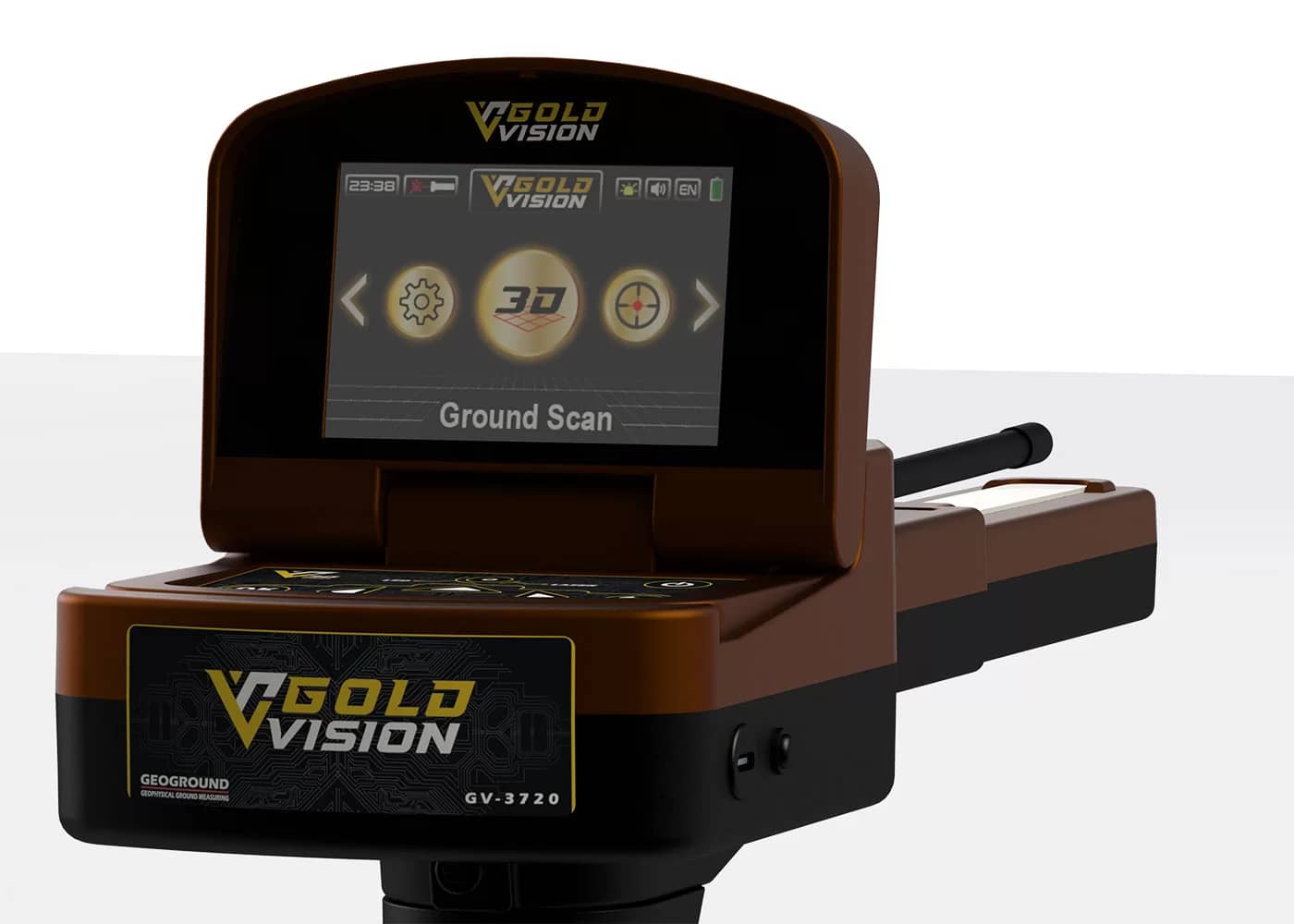

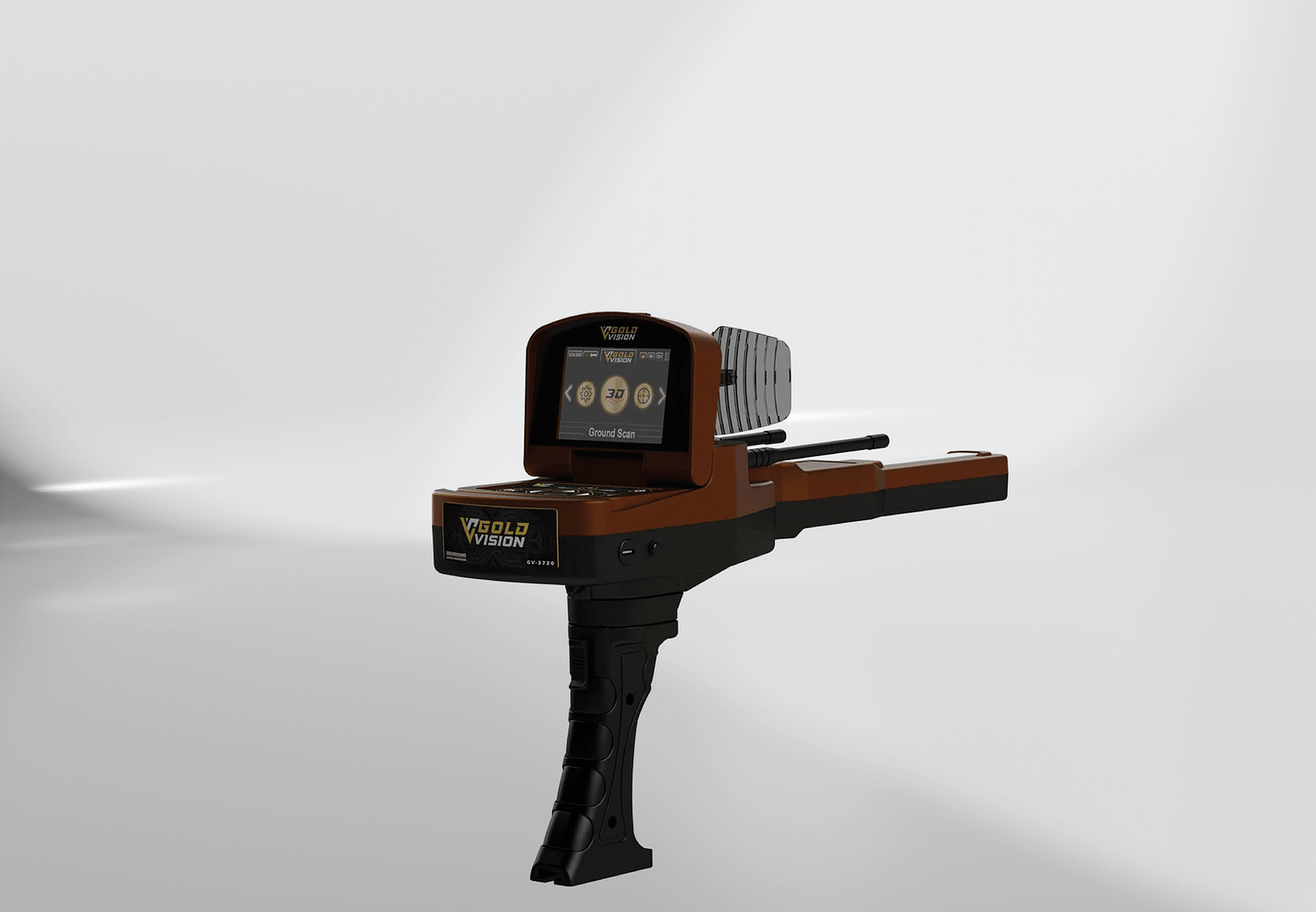

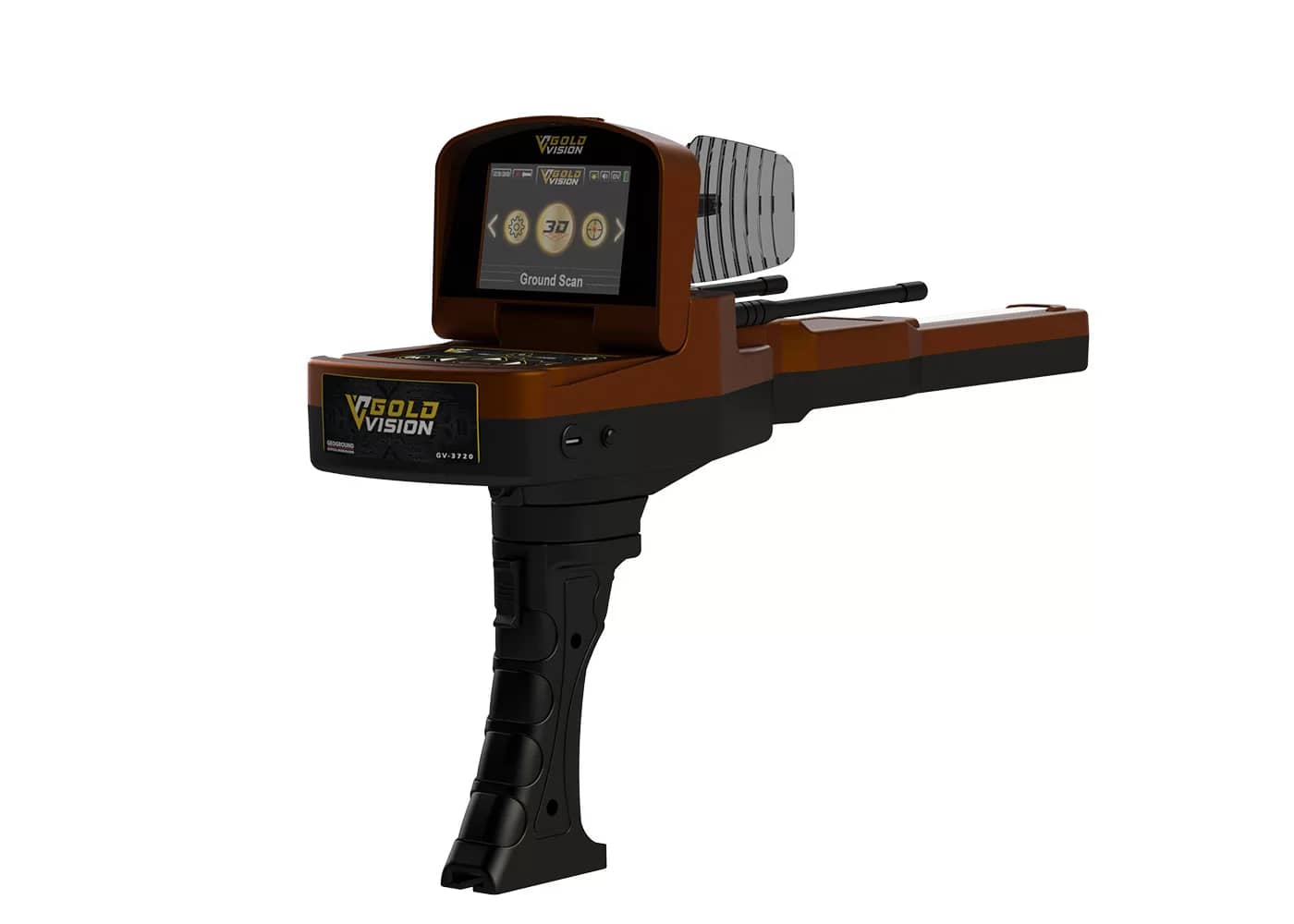

The GeoGround Gold Vision Gold and Metal Detector combines six search systems with a 3D ground scan and Android visualizer. This gold detector offers several ways to review a site; practical metal detection results depend on target and ground conditions.
Gold and Metal Detector Package Contents
- Main Electronic Unit
- Smart Sensor
- Signal Booster Dish
- Demountable Wireless Handle Unit
- RF Antennas
- Device Charger
- User Manual
- Warranty Card
GeoGround Gold Vision Gold and Metal Detector
The GeoGround Gold Vision Gold and Metal Detector combines six selectable search systems, including a 3D ground scan. Gold detection results depend on the selected mode, the target and the ground rather than a universal depth figure.

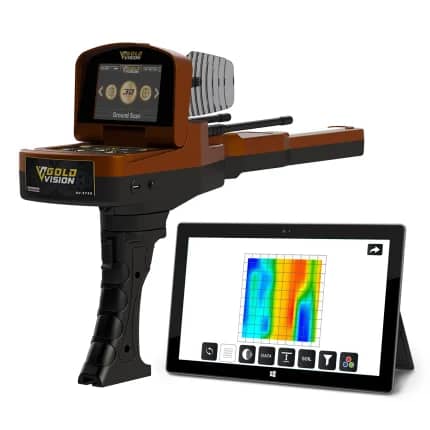

The GeoGround Gold Vision Gold and Metal Detector uses a sensor and companion Android visualizer for its 3D ground scan. Interpret a gold detector image as survey information that needs field checks before identifying an object.
Gold and Metal Detector Survey Capabilities
The GeoGround Gold Vision Gold and Metal Detector brings together 3D Ground Scan, Long Range, Free Mode, Smart Depth, Ionic and Bionic options. Its metal detector interface lets the operator select a method for the site; no single mode proves a buried target’s identity.
A Smart Sensor records ground response for the GeoGround Gold Vision Gold and Metal Detector, with scan data sent by Bluetooth to an Android analysis app. For metal detection, review the visual result alongside repeat measurements and the search environment before drawing a conclusion.
Gold and Metal Detector Search Systems
- 1. 3D Ground Scan System
Detects magnetic field variations and generates a detailed 3D map of the underground using the dedicated app (Android compatible via Bluetooth with real-time display of depth, shape, and metal type in zigzag or parallel modes). - 2. Long-Range System
Detects metal objects and buried gold from long distances with adjustable settings for soil type, target type, range, and depth. - 3. Free Mode System
Allows manual frequency adjustment for targeted metal detection, letting users fine-tune soil parameters and frequencies. - 4. Smart Depth System
Accurately determines the depth and shape of buried objects using motion analysis and angle measurement. - 5. Ionic System
Detects ionic fields emitted by buried metals or cavities using dual separate indicators for metal and cavity signals. - 6. Bionic System
Stores the signal of a real metal sample (e.g., a gold coin) and searches for identical signatures nearby for targeted prospecting.
Gold and Metal Detector Search Uses
- ✔ Beaches: Detect gold jewelry, coins, and watches
- ✔ Construction sites: Locate metal pipes and buried objects
- ✔ Fields and forests: Search for ancient treasures and relics
- ✔ Caves and tunnels: Discover cavities and mineral deposits
Gold and Metal Detector Package Contents
- ✔ Gold Vision Gold and Metal Detector Main Unit
- ✔ Smart Sensor
- ✔ Signal Amplifier Dish
- ✔ Detachable Handle
- ✔ HF Antennas
- ✔ Charger
- ✔ Warranty Card
- ✔ Carrying Case
Gold and Metal Detector Technical Specifications
| I. Core Specifications | |
| Processor | ARM, 72 MHz |
|---|---|
| Memory | 2 GB SD Card |
| Display | 3.5” TFT-LCD (480×320 px, 64K colors, LED Backlight) |
| Audio Output | Internal Speaker (3W) + 3.5 mm Headphone Jack |
| II. Power & Hardware | |
| Battery Type | Lithium-Ion, 9,600 mA / 9.6 Ah (Built-in) |
| Charger Input / Output | Input: 100–220 V, 50/60 Hz | Output: 5 V / 2.5 A |
| Additional Features | Vibration, 5 mm Flash LED, Laser (650 nm / 5 mW) |
| Operating Temperature | 0–40 °C |
| Dimensions & Weight | Package: 400 × 300 × 160 mm | Weight: 3.2 kg |
| Warranty | 3 Years |
Share this Device
Gold and Metal Detector Frequently Asked Questions
Q: How many search systems does the GeoGround Gold Vision Gold and Metal Detector provide for gold detection?
A: The manufacturer lists six systems for the GeoGround Gold Vision Gold and Metal Detector: 3D Ground Scan, Long Range, Free Mode, Smart Depth, Ionic and Bionic. Gold detector users should select a mode that matches the survey and follow the manual for setup.
Q: What depth can the GeoGround Gold Vision Gold and Metal Detector reach during metal detection?
A: The manufacturer page reviewed for the GeoGround Gold Vision Gold and Metal Detector does not give one guaranteed depth for every target. Metal detection depth varies with target size, ground conditions and search method, so treat any estimate as site specific.
Q: Does the GeoGround Gold Vision Gold and Metal Detector show a 3D view for gold detection on a mobile device?
A: The GeoGround Gold Vision Gold and Metal Detector sends ground scan data by Bluetooth to a compatible Android visualizer. A gold detector scan can be reviewed in 3D there, but an image alone cannot confirm the material of an underground target.
Technical Specifications
| SKU | GOLD-VISION |
|---|
