The Groundtech A2 3D Ground Scanner and Metal Detector combines subsurface imaging with pulse-induction metal detection. Its ground scanner modes help map buried anomalies, while the metal detector modes address conductive targets. The manufacturer describes up to 20 meters for 3D ground scanning under suitable conditions; interpret each result with target size and soil in mind.
Groundtech A2 3D Ground Scanner and Metal Detector
The Groundtech A2 3D ground scanner and metal detector combines subsurface imaging with pulse-induction search modes. Choose ground scanning for anomaly mapping and metal detection for conductive targets closer to the search coil.
The Groundtech A2 3D ground scanner and metal detector offers different survey methods for buried metals and other anomalies. Ground scanning results need interpretation with site evidence, while metal detector response changes with target size and soil.
3D Ground Scanner and Metal Detector Technology
The Groundtech A2 3D Ground Scanner and Metal Detector combines an MFS-3 dual sensor with an integrated pulse-induction coil system. Its 3D ground scanning and metal detection functions serve different questions; select the appropriate mode before drawing conclusions from a signal.
The Groundtech A2 3D ground scanner and metal detector offers six manufacturer-listed scanning modes, including ground scan and detector modes. Groundtech describes up to 20 meters for 3D ground scanning under suitable target and soil conditions; metal detector depth should not be inferred from that figure.
3D Ground Scanning and Metal Detection Modes
- 1. 3D Ground Scanning
Detects anomalies underground (metals, magnetic objects, voids) and allows for 3D analysis via the G-Portal app. - 2. Detector Quick Scan
Uses Pulse Induction (1 kHz) to instantly identify ferrous vs. non-ferrous metals. - 3. Live Scanning
Provides real-time visual feedback of underground changes as you walk without stopping. - 4. Pinpointer
Helps in precisely locating the exact center of the detected target. - 5. Advanced Scan
Allows manual calibration for specific soil types to ignore mineral interference and detect deeper. - 6. 3D Hybrid Scan
Combines standard detector signals with visual mapping for a complete analysis.
Ground Scanner and Metal Detector Package
- ✔ 3D Ground Scanner and Metal Detector Main Unit (Telescopic)
- ✔ MFS-3 Dual Sensor (Integrated)

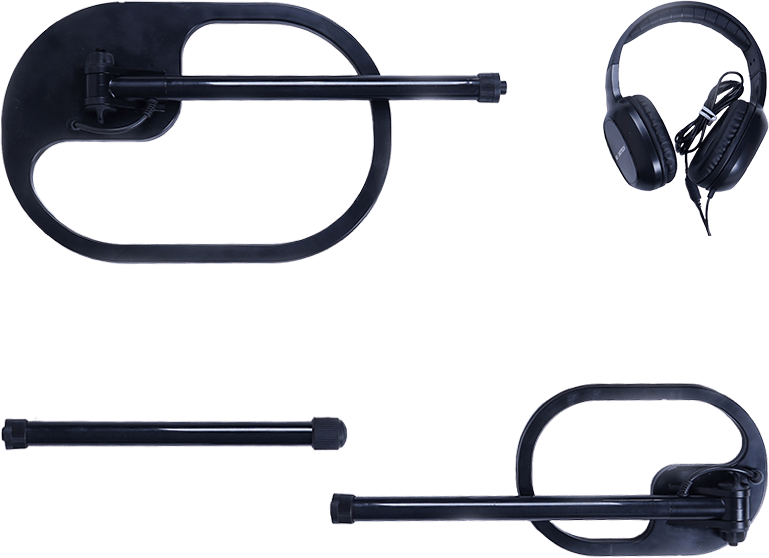

- ✔ PI Search Coil
- ✔ Charger Adapter (5V 2A)

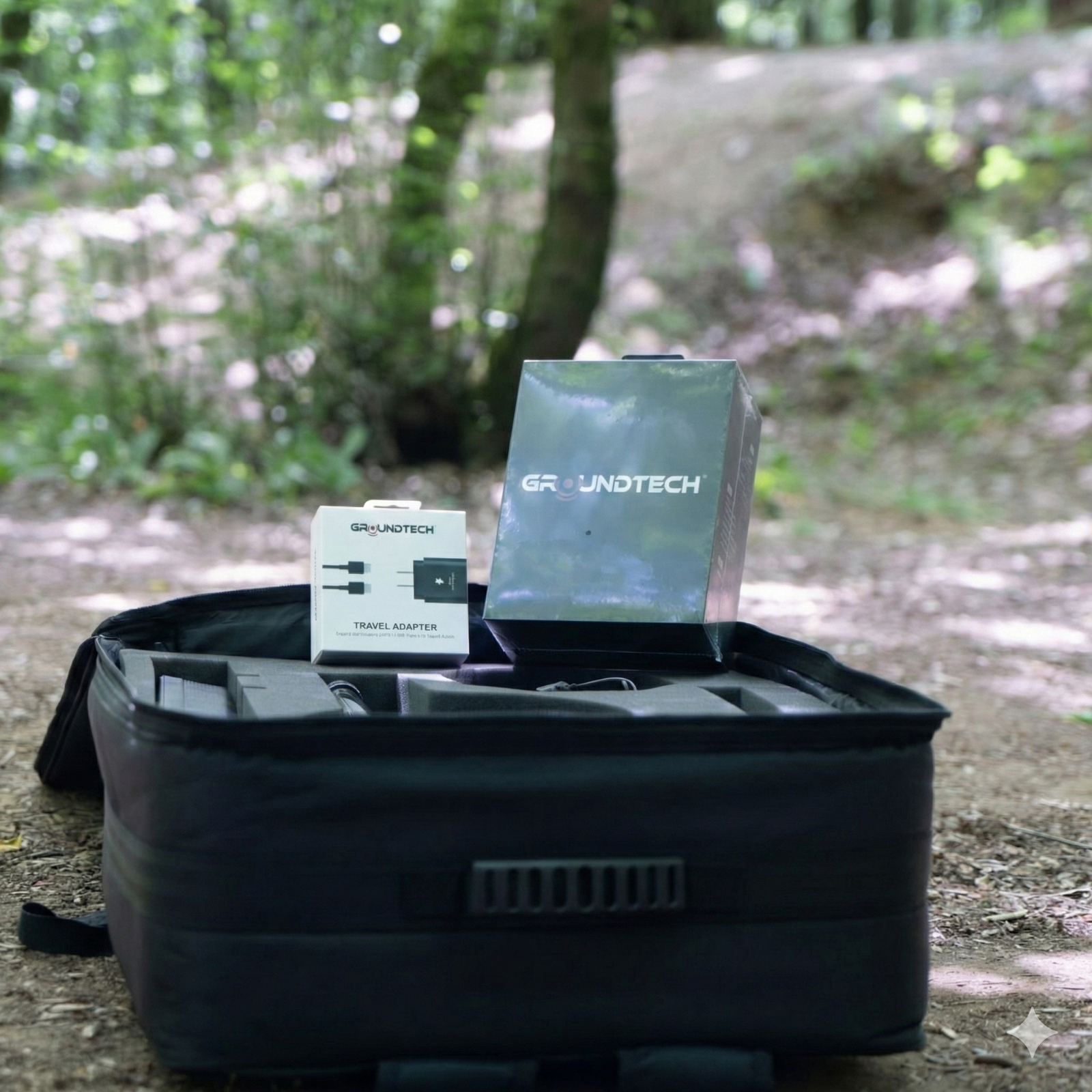

- ✔ Protective Hard Case
- ✔ Warranty (2 Years)
3D Ground Scanner Analysis Software
Use the Groundtech Portal app to review results from the Groundtech A2 3D ground scanner and metal detector on a compatible Android or iOS device. Compare 3D ground scanning views with the selected mode and field observations before interpreting a buried anomaly.
Android
iOSGround Scanner and Metal Detector Specifications
Detailed Ground Scanner and Metal Detector Specifications
| 1. System | 3D Ground Scanner + Pulse Induction Detector |
|---|---|
| 2. Sensor Technology | MFS-3 Dual Sensor (Gradiometer) ± 3000 µT |
| 3. Detector Tech | Pulse Induction – 1 kHz frequency |
| 4. CPU / Converter | 240 MHz CPU – 12-bit A/D converter |
| 5. Max Depth (3D) | Up to 20 Meters (Soil dependent) |
| 6. Max Depth (Detector) | Up to 3 Meters (Soil dependent) |
| 7. Wireless Connection | Bluetooth 4.2 BLE |
| 8. Battery | 3.7 V Li-ion rechargeable battery |
| 9. Battery Life | 6 Hours (PI Detector) / 10 Hours (3D Scan) |
| 10. Charging | 5V 2A USB (Type-C/Micro) |
| 11. Weight | ~ 2.0 kg |
| 12. Operating Temp | 0°C to 70°C |
| 13. Storage Temp | -20°C to 60°C |
| 14. Warranty | 2 Years |
| 15. Languages | App supports 25 languages |
Ground Scanner and Metal Detector Video
Share this Device
Ground Scanner and Metal Detector Questions
Q: What depth can the Groundtech A2 3D ground scanner and metal detector reach during ground scanning?
A: Groundtech states up to 20 meters for the Groundtech A2 3D ground scanner and metal detector’s 3D scanning system, depending on target size and soil. That ground scanning figure is conditional and does not set a universal metal detector depth.
Q: Does the Groundtech A2 3D ground scanner and metal detector offer ferrous/non-ferrous metal detection?
A: Its pulse-induction detector modes can help distinguish ferrous from non-ferrous responses. The Groundtech A2 3D ground scanner and metal detector still requires careful metal detection interpretation; a response alone cannot prove that a target is gold.
Q: Which software displays Groundtech A2 3D ground scanner and metal detector data for ground scanning analysis?
A: Groundtech lists its Portal app for Android and iOS as the 3D analysis tool. Pair the Groundtech A2 3D ground scanner and metal detector with a compatible device and review ground scanning results with the current app version.
