The KS Analysis KS 700 Ground Penetrating Radar is an FMCW instrument for subsurface profiles of voids, tunnels and buried structures. This ground radar uses an integrated antenna and supports 2D analysis with export for compatible 3D tools. Ground penetrating radar depth depends on geology and target size; the manufacturer's 40-metre figure is conditional.

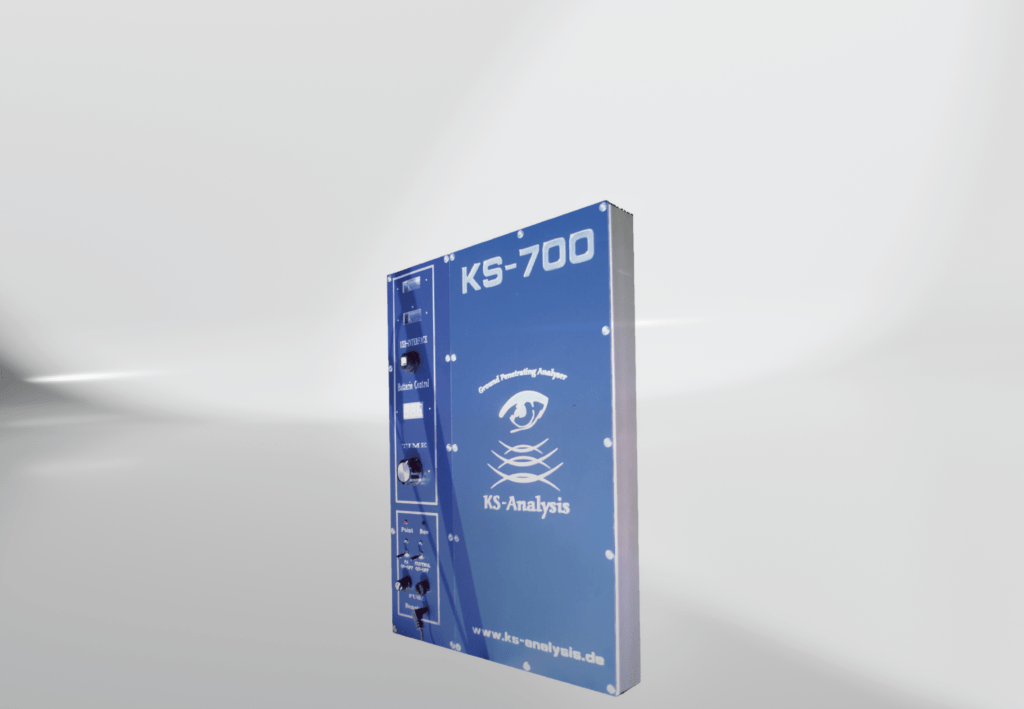

KS Analysis KS 700 Ground Penetrating Radar
The KS Analysis KS 700 Ground Penetrating Radar uses FMCW technology and a fixed antenna for subsurface survey work. This ground radar records profiles that require interpretation against geology and target size.
The manufacturer describes the KS Analysis KS 700 Ground Penetrating Radar for finding voids and underground structures. Ground radar penetration is site dependent; the stated 40-metre figure is not a guarantee for every soil or target.
KS 700 Ground Penetrating Radar FMCW Survey
The KS Analysis KS 700 Ground Penetrating Radar is an FMCW survey instrument with an integrated, shielded antenna. This ground radar can help locate large cavities, tunnels and buried infrastructure when survey lines and ground conditions are suitable.
The manufacturer’s standard description of the KS Analysis KS 700 Ground Penetrating Radar refers to surveying in solid rock to about 40 metres. Ground radar observations of very large tunnels have been reported deeper in limestone, but that does not establish a universal depth for smaller objects.
Ground Radar Survey Modes
1. Cavity Detection
The KS Analysis KS 700 Ground Penetrating Radar can be used to investigate possible voids, chambers and tunnels. A ground radar anomaly must be cross-checked with repeat profiles and, where needed, another survey method before excavation.
2. Metal Detection
The KS Analysis KS 700 Ground Penetrating Radar also supports investigation of buried metal infrastructure. Ground radar response depends on depth, conductivity and surrounding material, so an image alone cannot prove whether an anomaly is ferrous or non-ferrous metal.
3. 2D Real-Time View
The KS Analysis KS 700 Ground Penetrating Radar provides 2D survey profiles for interpretation during fieldwork. Ground radar data can be exported for compatible 3D visualization tools when the required software and license are available.

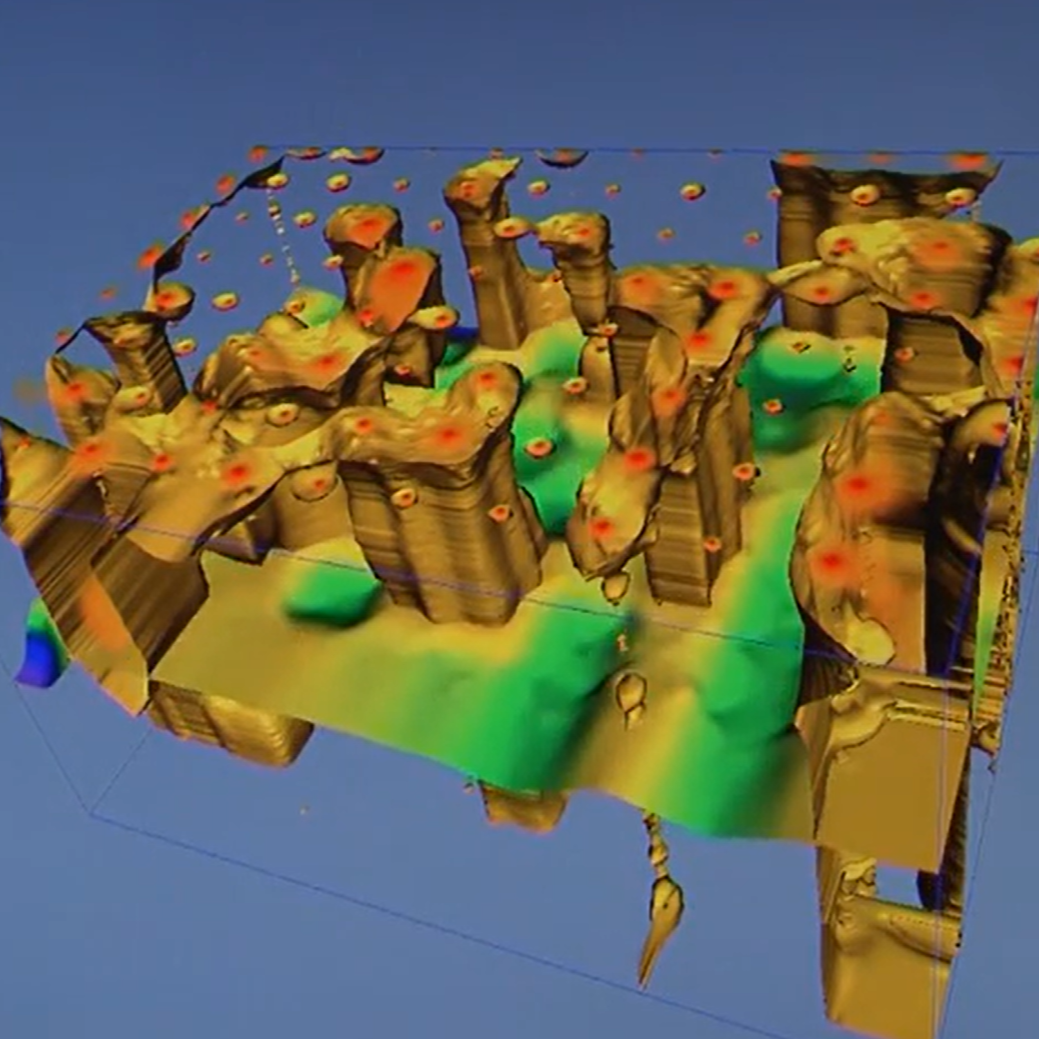

4. 3D Analysis
The KS Analysis KS 700 Ground Penetrating Radar can export measurements for further modelling in compatible tools. Ground radar survey quality still depends on measurement spacing and clear records of each scan path.
Ground Penetrating Radar Technical Specifications
| I. System Capabilities | |
|---|---|
| 1. Device Name | KS Analysis KS 700 Ground Penetrating Radar |
| 2. Data Processing | FFT (Fast Fourier Transform) |
| 3. Max Depth Range | Around 40 metres in solid rock; a larger tunnel was reported deeper in limestone |
| 4. Operating System | Windows (Tablet/Laptop req.) |
| 5. Usage | Archaeology, Geophysics, Construction |
| II. Radar Specifications | |
| 6. Radar Type | FMCW (Frequency Modulated Continuous Wave) |
| 7. Sampling Rate | 20ns – 100ns |
| 8. Real-Time Sampling | 1.25 kHz – 50 MHz |
| 9. Max Sampling | 1 GHz |
| 10. Bandwidth | DC – 60 MHz |
| 11. FFT Resolution | 2048 Lines |
| 12. Signal Timing | 1 – 15 Seconds (Adjustable) |
| 13. Interface | USB Data Connection |
| III. Hardware & Physical | |
| 14. Dimensions | 445 x 334 x 120 mm |
| 15. Weight | 5.1 kg (Without battery) |
| 16. Battery Type | 12V 18Ah Lead-Acid/Gel |
| 17. Operating Time | Approx. 8 Hours |
| 18. Antenna Type | Integrated / Shielded |
| 19. Operating Temp | -10°C to 50°C |
| 20. Portability | One-Person Operation |
| 21. Integration | Laptop/Tablet (Not Included) |
| 22. Display | Via External PC Screen |
| IV. Additional Info | |
| 23. Software | “StoneAge” Visualization Suite |
| 24. 3D Compatibility | Voxler / Golden Surfer |
| 25. Setup Time | < 5 Minutes |
| 26. Soil Types | Performance varies with limestone, clay and sand |
| 27. Calibration | Automatic Ground Balance |
| 28. Package Weight | Approx. 15 kg |
| 29. Training | Video Tutorials Included |
| 30. Warranty | 2 Years |

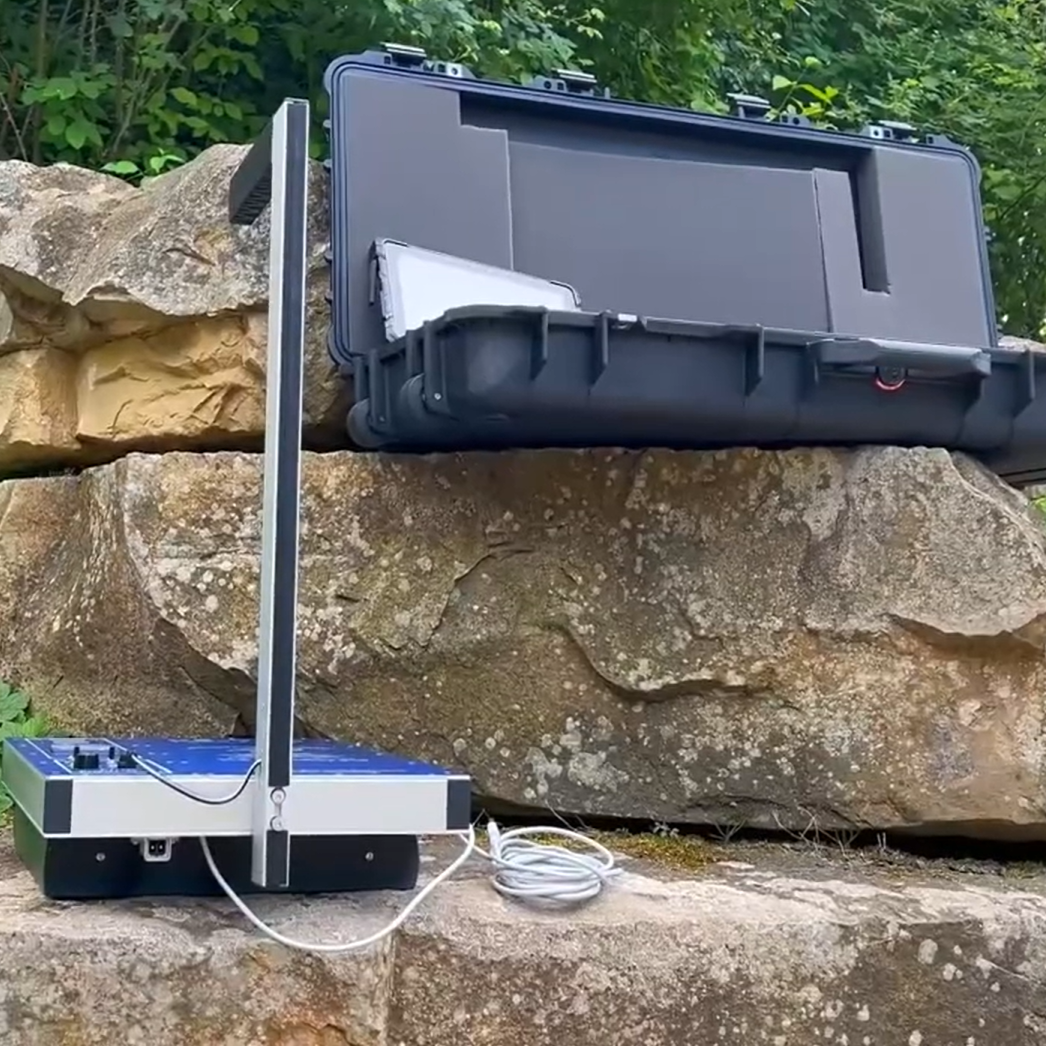

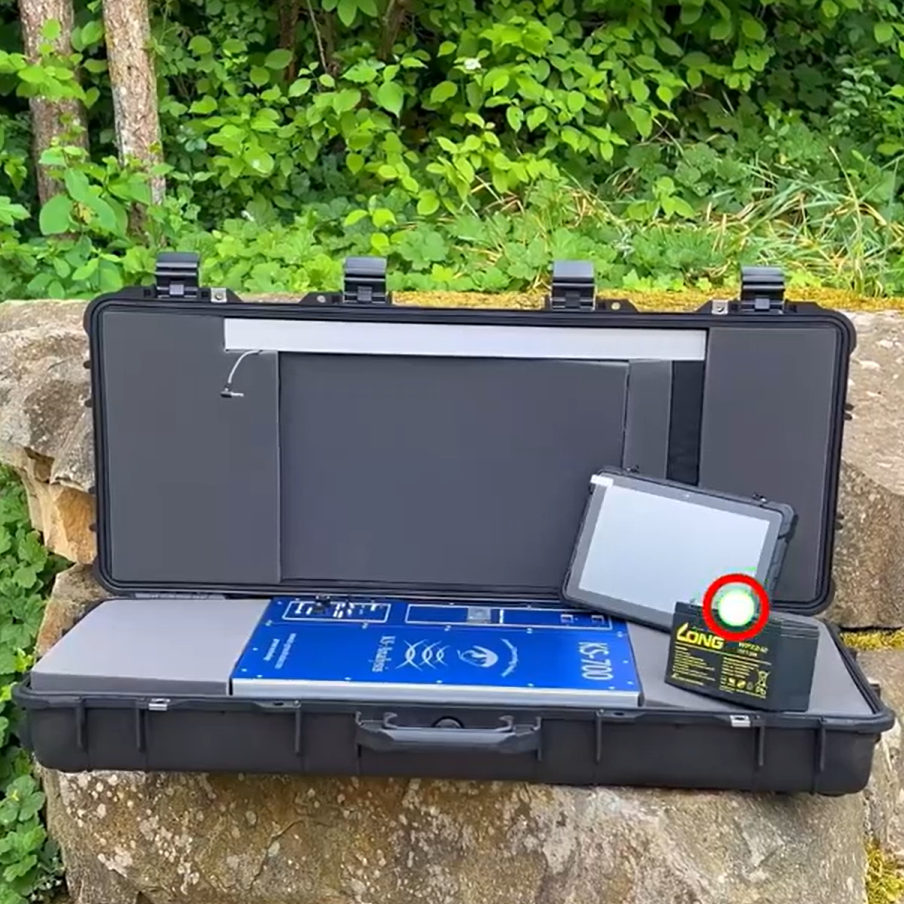

Ground Penetrating Radar Package Contents
- 1. Main Control Unit: FMCW radar electronics with USB interface.
- 2. Integrated Antenna: Wideband shielded antenna (no exchange needed).

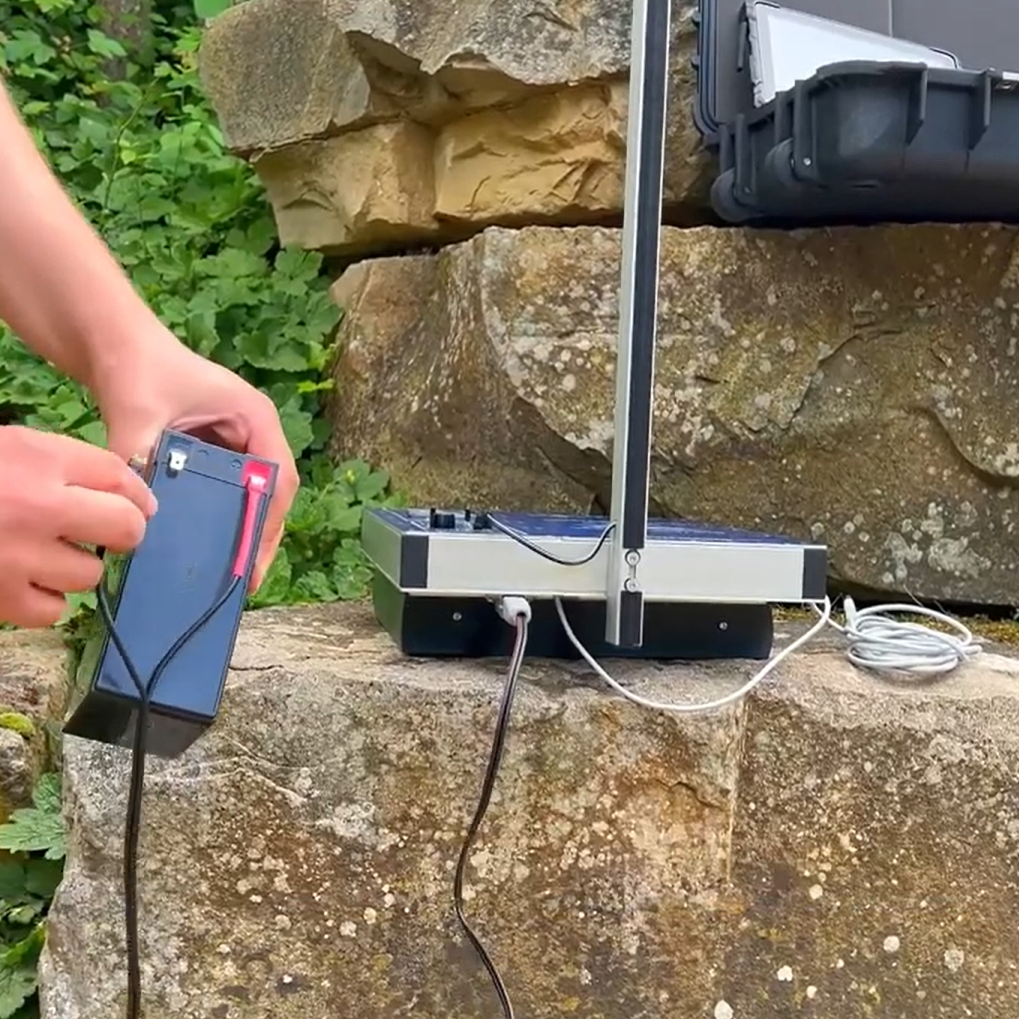

- 3. High Capacity Battery: 12V 18Ah Gel Battery for extended use.
- 4. 2D Software: “StoneAge” visualization software included.
- 5. 3D Software Capable: Compatible with Voxler (Export function).
- 6. Connection Cables: USB data cable and Battery cable.
- 7. Charger: Automatic fast charger for 12V system.
- 8. Carrying Case: Robust protective case for transport.

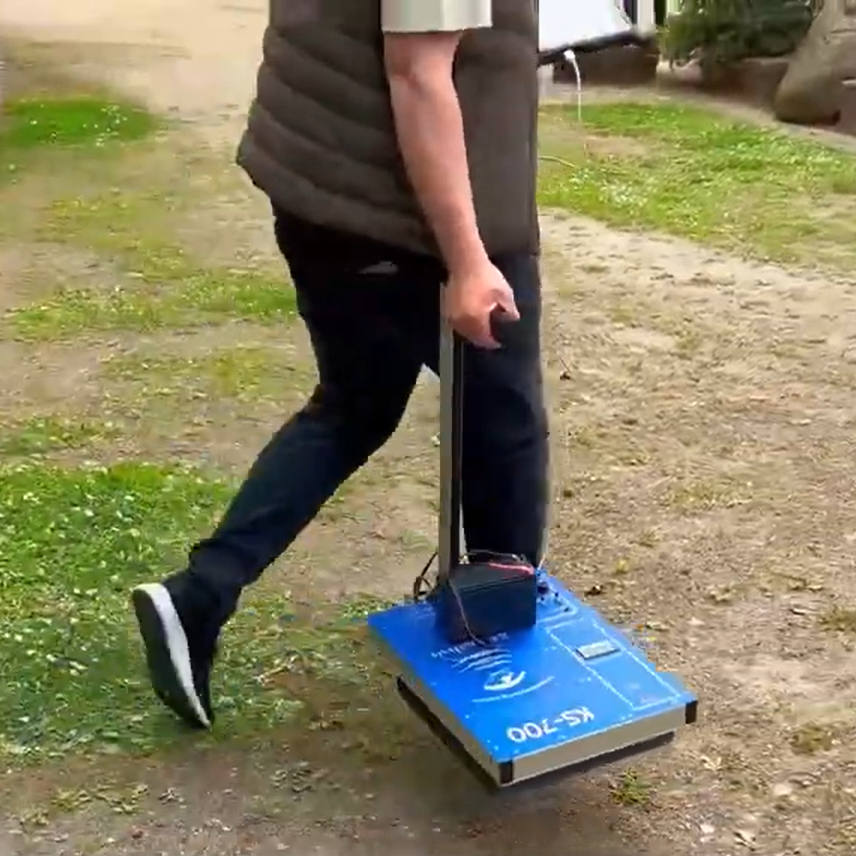

Ground Penetrating Radar Field Demonstration
Share this Device
Ground Penetrating Radar Buyer Questions
Q: Why can the KS Analysis KS 700 Ground Penetrating Radar use one antenna for a ground radar survey?
A: The manufacturer describes an integrated antenna for the KS Analysis KS 700 Ground Penetrating Radar, avoiding antenna changes between its supported survey settings. Ground radar resolution and penetration still vary with site conditions and target geometry.
Q: How does the KS Analysis KS 700 Ground Penetrating Radar compare with the KS 800 Ground Penetrating Radar?
A: The KS Analysis KS 700 Ground Penetrating Radar is presented for portable 2D and 3D survey review, while the KS 800 Ground Penetrating Radar adds continuous measurement and automatic recording. Compare the exact software, accessories and survey workflow before choosing either ground radar system.
Q: How deep can the KS Analysis KS 700 Ground Penetrating Radar survey with ground radar?
A: The manufacturer describes the KS Analysis KS 700 Ground Penetrating Radar for up to about 40 metres in solid rock, with a deeper example involving a large tunnel in limestone. Ground radar performance for a given site cannot be inferred from that example without considering soil and target size.
“`
Technical Specifications
| SKU | KS-700 |
|---|
