KS Analysis KS 900 Ground Penetrating Radar
The KS Analysis KS 900 ground penetrating radar is presented for deep subsurface surveys. This ground penetrating radar can help investigate buried anomalies, with penetration and detail depending strongly on geology and survey settings.
The KS Analysis KS 900 ground penetrating radar supports surveys for cavities, tunnels and buried structures. This ground penetrating radar can also indicate anomalies associated with metal targets; interpret results with site history and follow-up investigation.
KS 900 Ground Penetrating Radar Subsurface Imaging

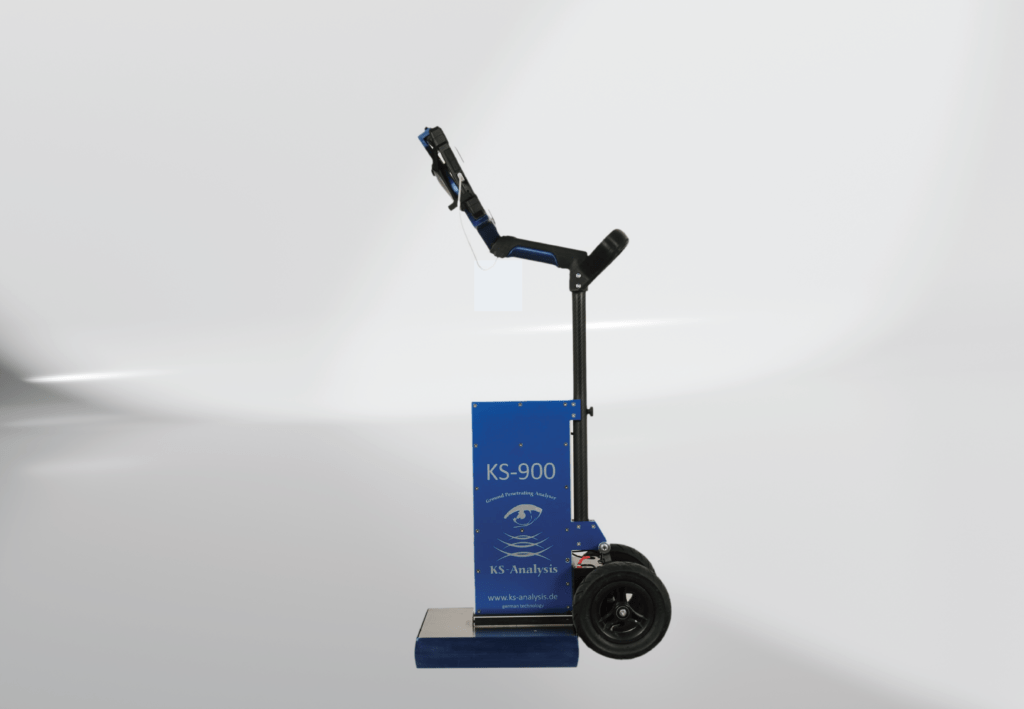

The KS Analysis KS 900 Ground Penetrating Radar is a mobile subsurface survey system from KS Analysis. Its ground penetrating radar output can help map changes below the surface, but neither a radar trace nor a single metal detection response proves a specific buried object.

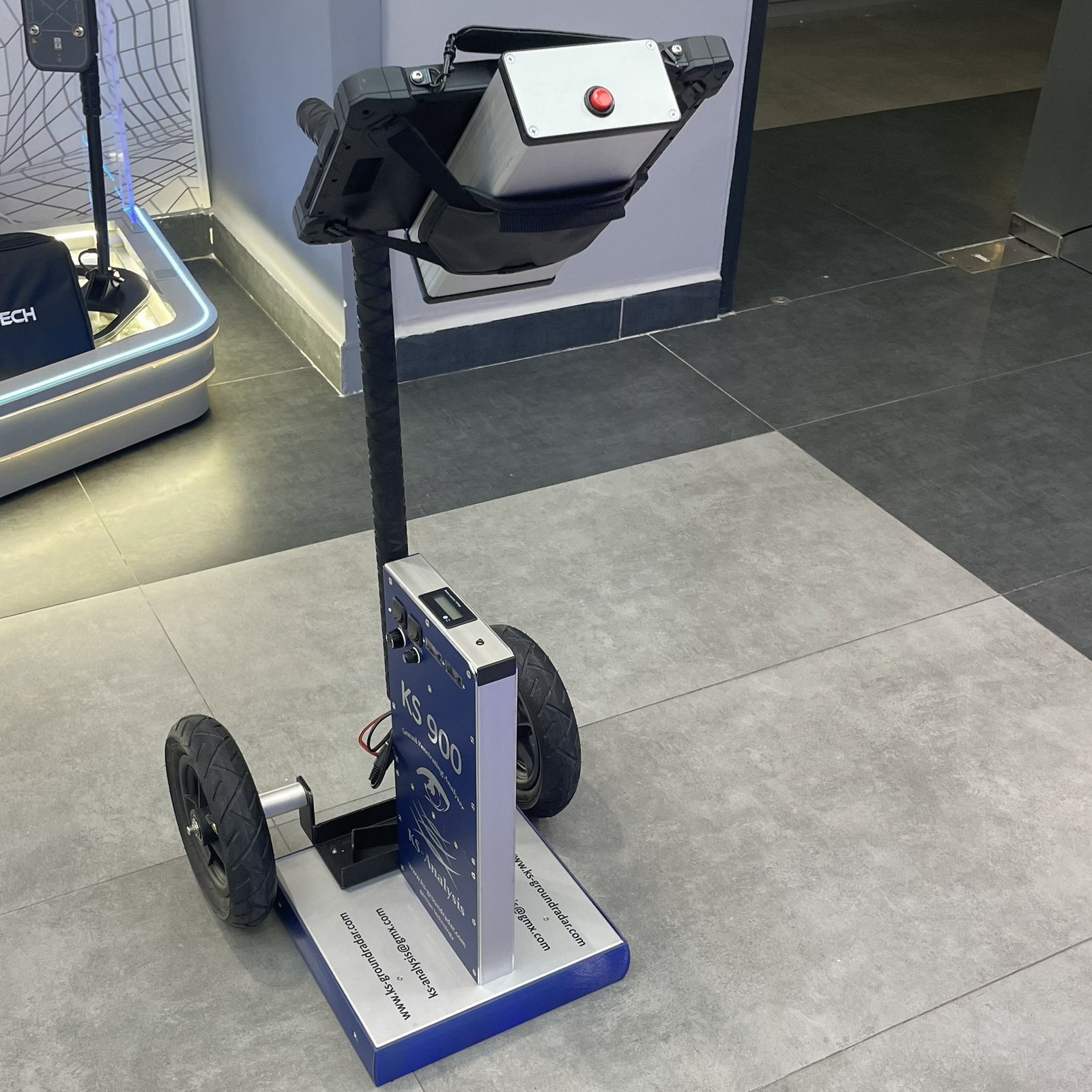

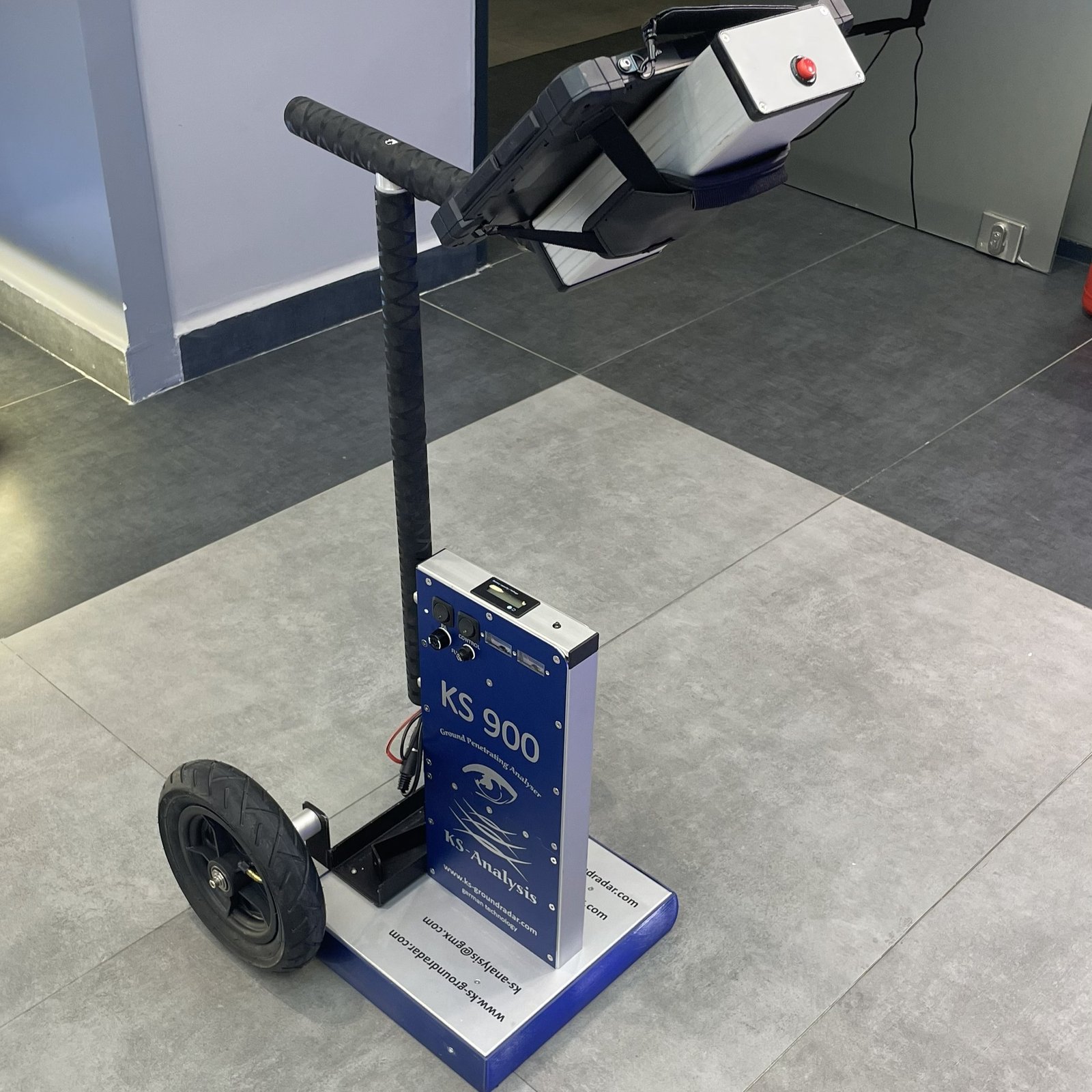

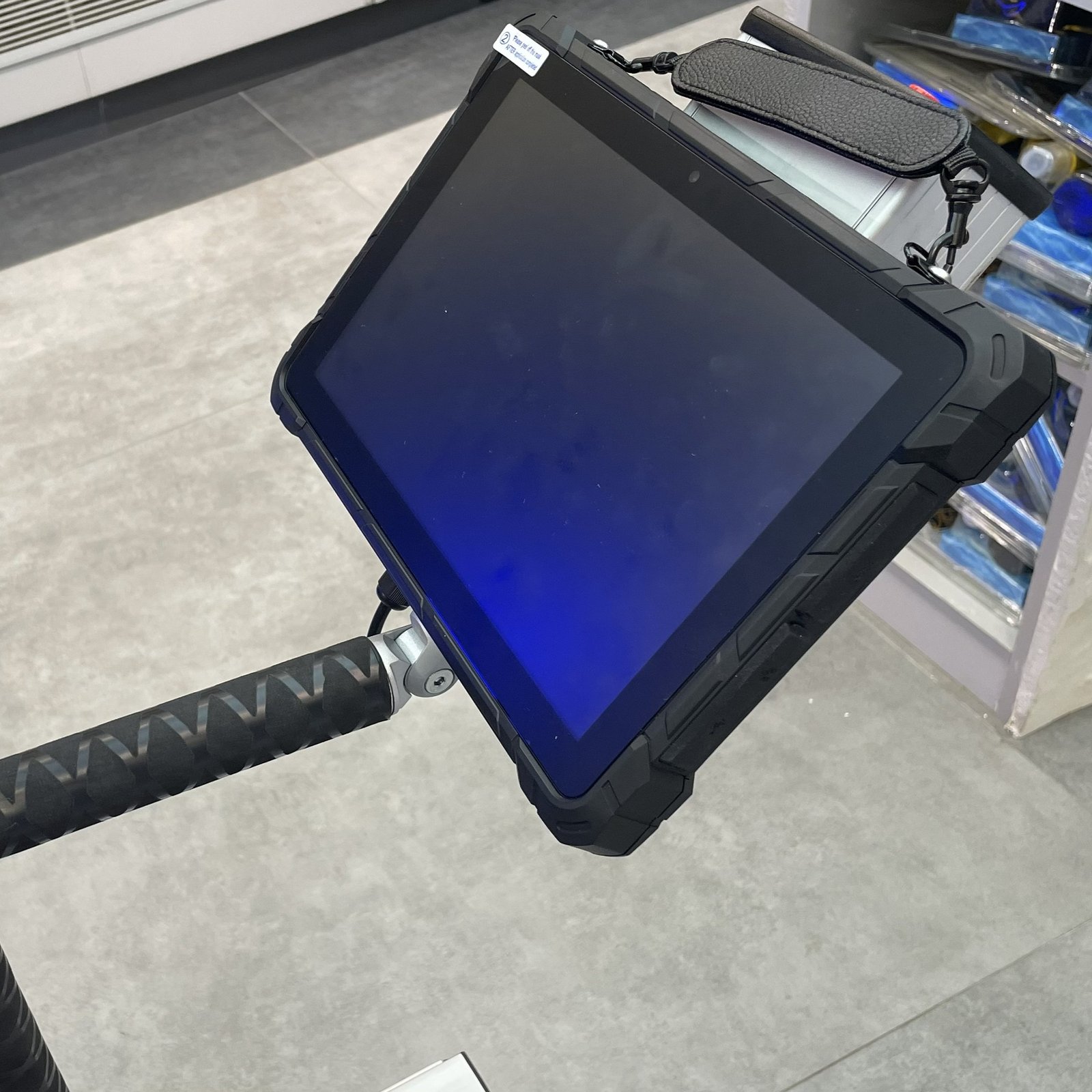

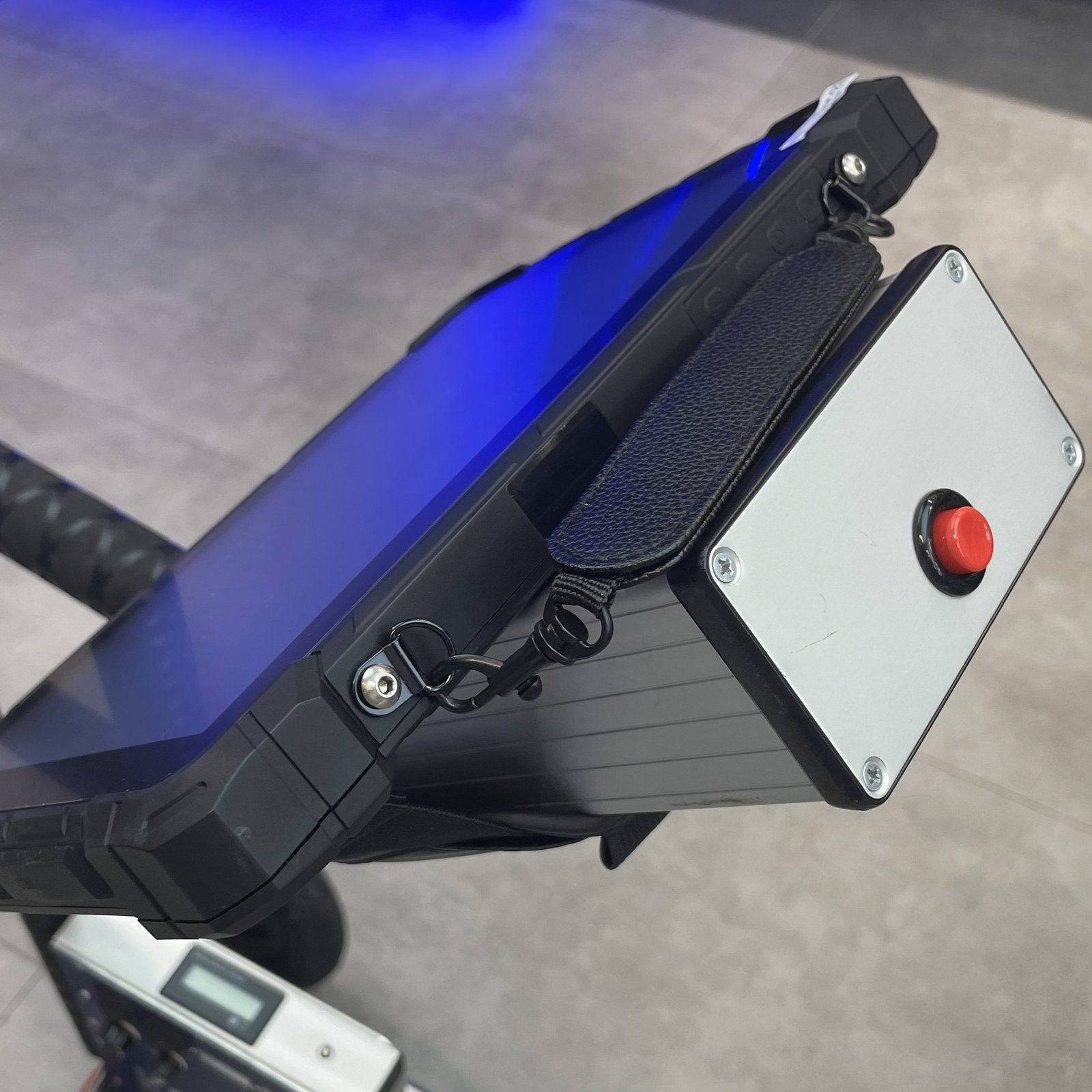

The KS Analysis KS 900 ground penetrating radar uses a field-ready mobile design with an integrated control interface. Use the ground penetrating radar according to its survey instructions, keeping antenna position and measurement spacing consistent across the target area.
KS Analysis describes the KS 900 ground penetrating radar as reaching up to 60 meters in suitable limestone conditions. That is a conditional claim for this ground penetrating radar: wet clay, small targets and other ground conditions can substantially reduce useful penetration or resolution.
KS 900 Ground Penetrating Radar Survey Method
- 1. FMCW Technology
Frequency Modulated Continuous Wave radar allows for broadband scanning, providing high resolution at shallow depths and extreme penetration for deep targets simultaneously. - 2. Real-Time Visualization

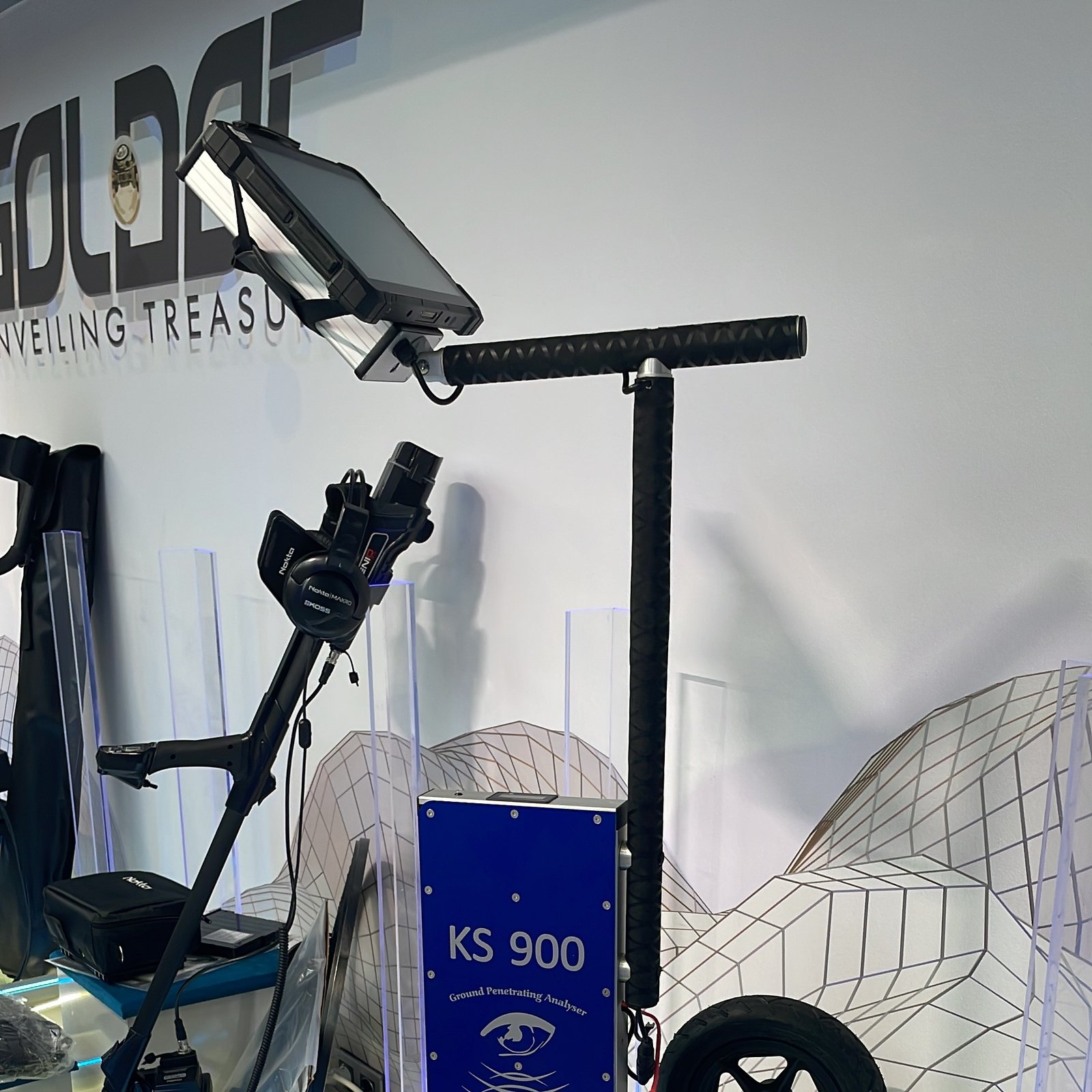

Data is processed instantly on the integrated tablet. Users can switch between 2D cross-section views and 3D volume rendering immediately in the field. - 3. Single-Antenna Design
The ground penetrating radar uses a shielded antenna that covers a wide frequency spectrum, eliminating the need to swap coils for different depths. - 4. All-Terrain Operation

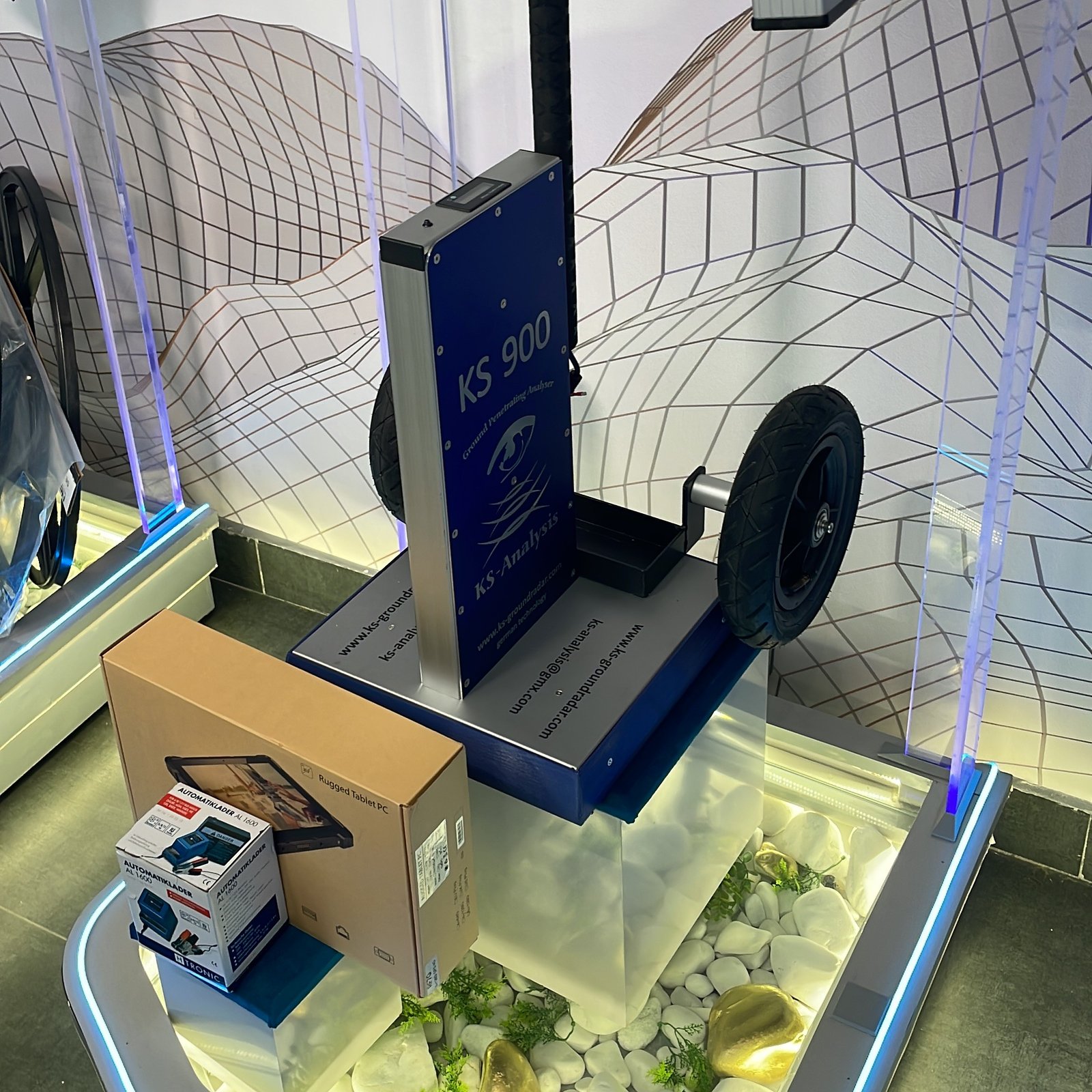

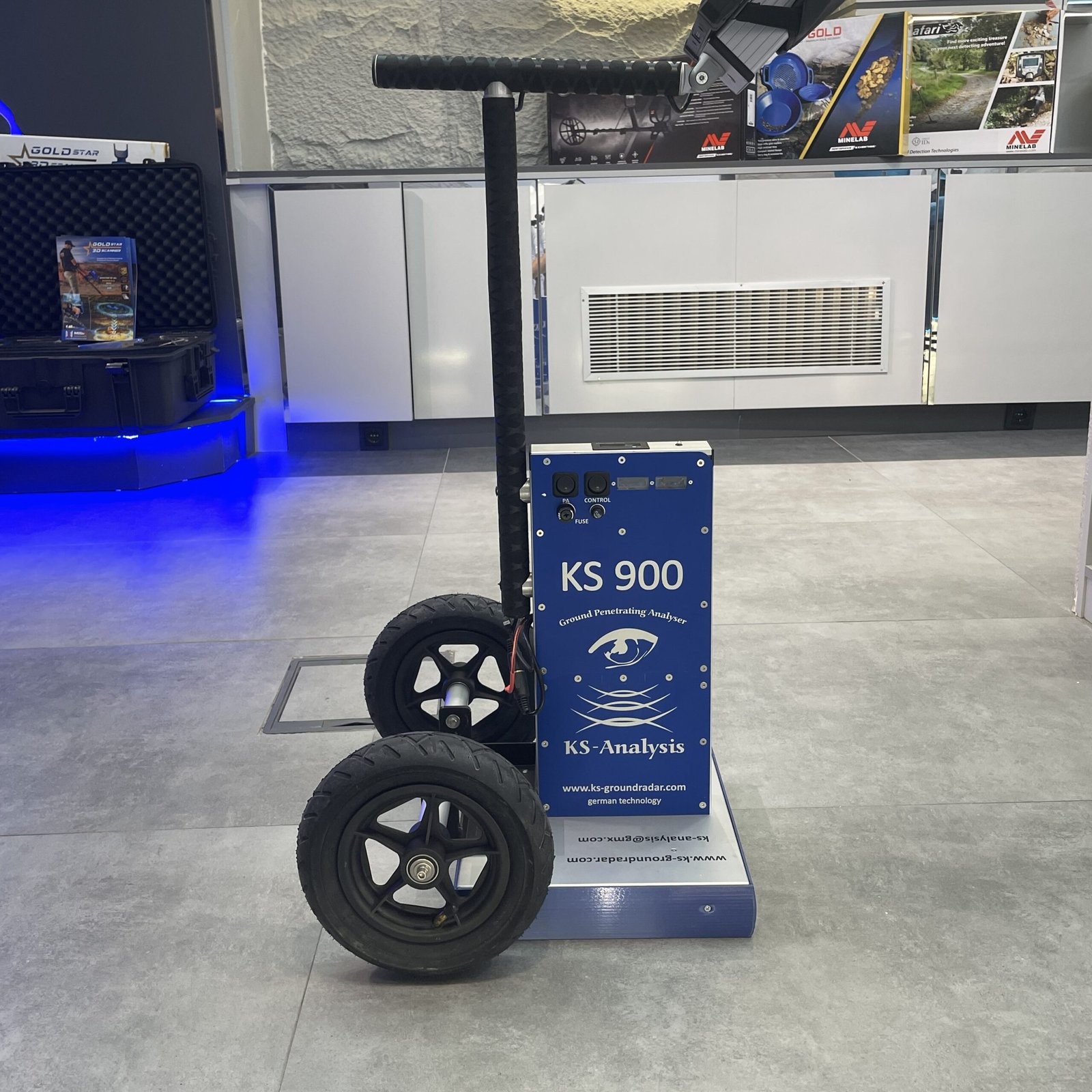

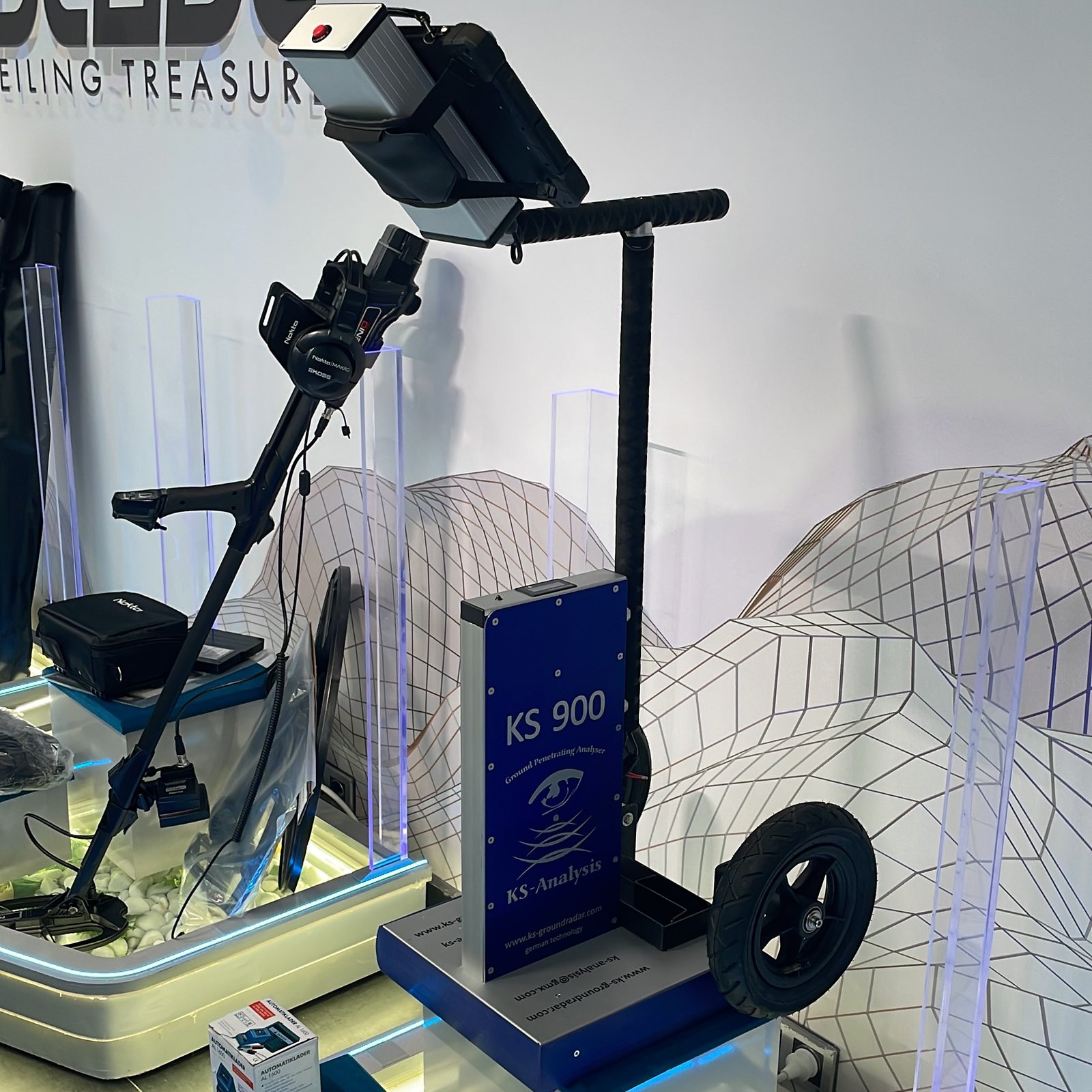

The rugged trolley system is designed for uneven ground, ensuring stable antenna positioning which is crucial for accurate radar data. - 5. Data Export
Scan data can be exported via USB for further analysis in professional geological software like Voxler or Surfer.
KS 900 Ground Penetrating Radar vs KS 700 Ground Penetrating Radar
| Feature | KS 700 Ground Penetrating Radar (Classic) | KS 900 Ground Penetrating Radar (Advanced) |
|---|---|---|
| Control Unit | External PC Required | Integrated Touch Tablet |
| Max Depth | Up to 40 Meters | Up to 60 Meters |
| Portability | Manual Assembly Required | Foldable Trolley System |
| User Interface | Standard Software | Real-Time 3D Visualization |
| Antenna Type | Standard FMCW | Broadband Shielded FMCW |
KS 900 Ground Penetrating Radar Package
- ✔ Ground Penetrating Radar Control Unit (Touchscreen)
- ✔ FMCW Broadband Antenna
- ✔ Collapsible Mobile Trolley
- ✔ 12V Battery Pack
- ✔ Fast Charger (110V/220V)
- ✔ USB Data Cable
- ✔ 3D Visualization Software
- ✔ Rugged Transport Case
KS 900 Ground Penetrating Radar Specifications
| I. General Information | |
| 1. Manufacturer | KS Analysis |
|---|---|
| 2. Country of Origin | Germany |
| 3. Model | KS 900 Ground Penetrating Radar |
| 4. Device Type | Ground Penetrating Radar (GPR) |
| 5. Application | Geology, Archaeology, Void Detection |
| II. Radar Performance | |
| 6. Radar Technology | FMCW (Frequency Modulated CW) |
| 7. Antenna Type | Broadband Shielded Antenna |
| 8. Frequency Range | 30 MHz – 900 MHz (Broadband) |
| 9. Max Detection Depth | Up to 60 Meters (Limestone/Dry) |
| 10. Sampling Rate | Real-time Continuous |
| 11. Calibration | Automatic Ground Adjustment |
| 12. Signal Processing | Digital DSP |
| III. Control Unit & Display | |

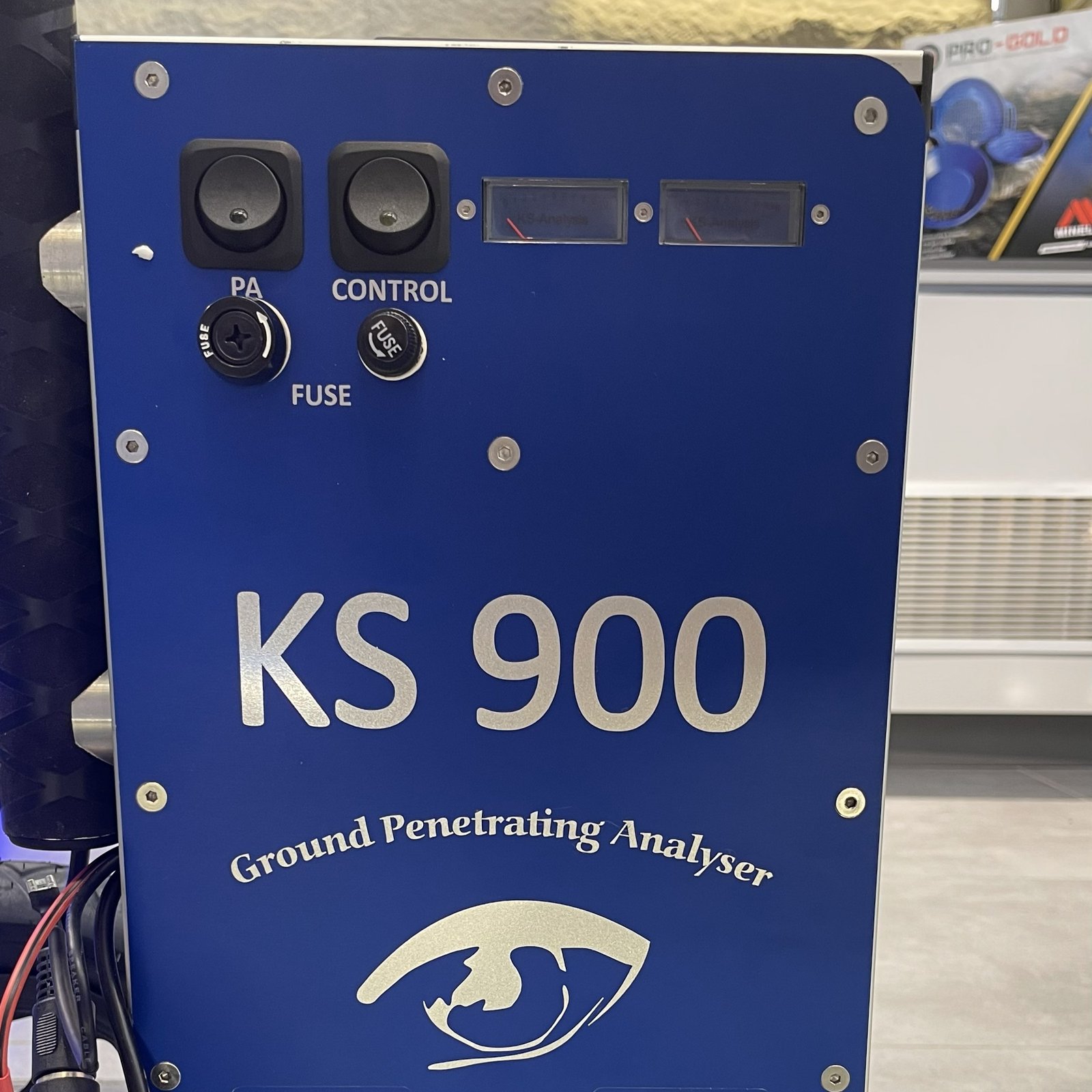

| 13. Interface | Integrated Control Box |

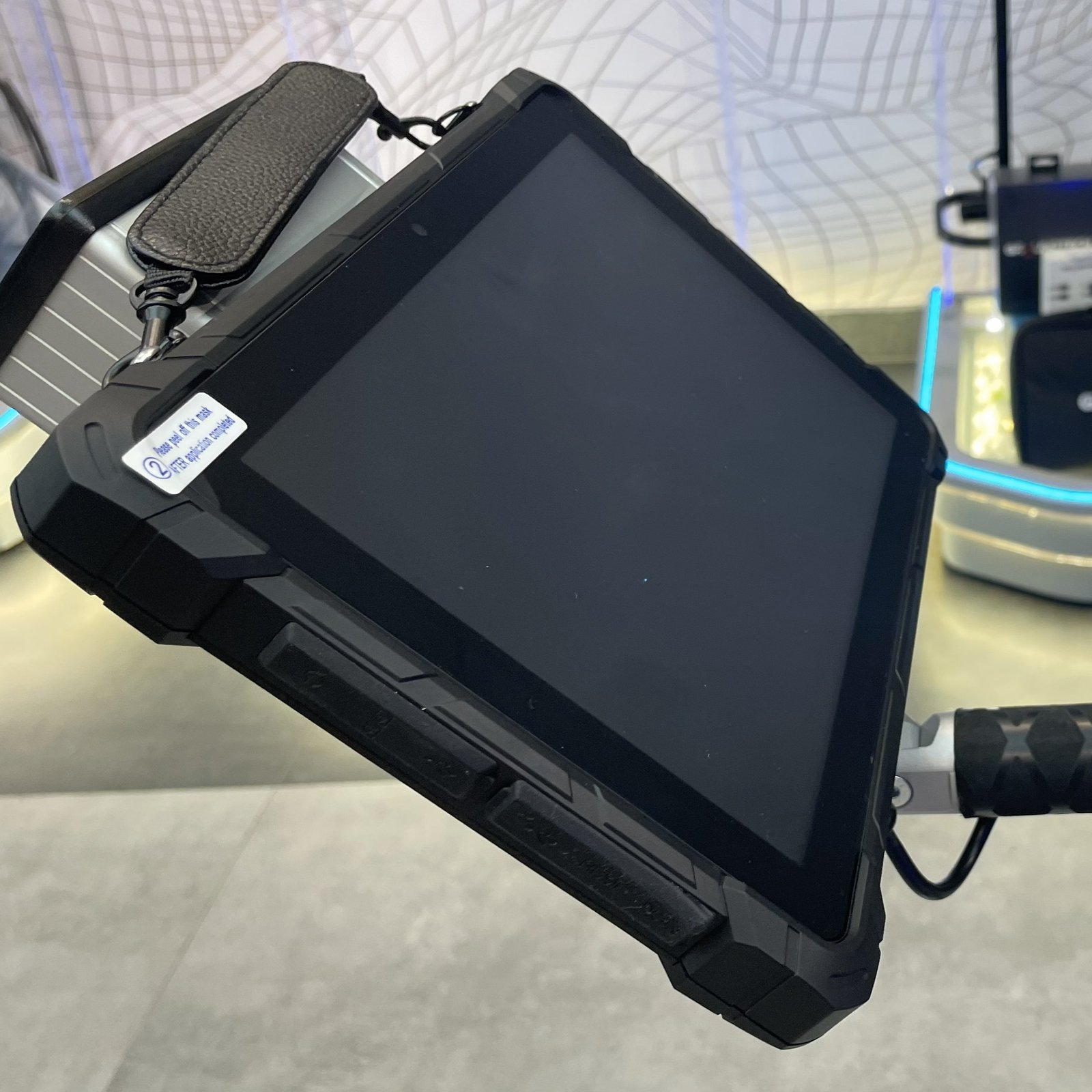

| 14. Screen Type | LCD Touchscreen |
| 15. Screen Size | 10 Inches |
| 16. Operating System | Embedded Windows / Linux |
| 17. Visualization Modes | 2D Cross-section, 3D Volume |
| 18. Data Storage | Internal SSD (Expandable) |
| 19. Data Export | USB 3.0 |
| IV. Power & Physical | |
| 20. Battery Type | Sealed Lead-Acid / Li-Ion |
| 21. Voltage | 12V DC |
| 22. Operating Time | Approx. 8 Hours |
| 23. Weight (Assembled) | Approx. 5.5 kg |
| 24. Cart Material | Robust Aluminum/Composite |
| 25. Wheel Type | Off-road Pneumatic Tires |
| 26. Operating Temp | -10°C to +50°C |
| 27. Storage Temp | -20°C to +60°C |
| 28. Protection Class | IP54 (Splash Proof) |
| 29. Assembly | Tool-free Quick Assembly |
| V. Additional Info | |
| 30. Software Included | KS Analysis 3D Suite |
| 31. 3rd Party Software | Compatible with Voxler / Surfer |
| 32. Shipping Weight | Approx. 18 kg |
| 33. Documentation | English/German Manuals |
| 34. Training | Video Tutorials Included |
| 35. Warranty | 2 Years |
KS 900 Ground Penetrating Radar Software
Check the current KS Analysis support page for the KS 900 ground penetrating radar manual and software applicable to the supplied unit. This ground penetrating radar’s data should be reviewed with the correct software version and acquisition settings.
KS 900 Ground Penetrating Radar Demonstration
Share this Device
KS 900 Ground Penetrating Radar Buyer Questions
Q: What depth can the KS Analysis KS 900 ground penetrating radar reach, and does this ground penetrating radar always reach 60 meters?
A: KS Analysis mentions up to 60 meters in limestone for the KS 900 ground penetrating radar. Useful ground penetrating radar depth varies by material, moisture, target size and survey settings; the figure is not a guaranteed result on every site.
Q: Does the KS Analysis KS 900 ground penetrating radar need a separate laptop for every ground penetrating radar survey?
A: The KS Analysis KS 900 ground penetrating radar is described with an integrated touchpad interface for field operation. Review the supplied ground penetrating radar package and export workflow to determine when an external computer is needed for later analysis.
Q: Can the KS Analysis KS 900 ground penetrating radar indicate non-metallic structures during ground penetrating radar scanning?
A: Ground penetrating radar responds to differences in subsurface electromagnetic properties, so the KS Analysis KS 900 ground penetrating radar may show cavities, pipes or other boundaries. A ground penetrating radar anomaly is an interpretation clue, not certain identification of material or contents.
