The KS Analysis KS 700 is an FMCW ground penetrating radar with an integrated antenna for 2D subsurface profiles and export to compatible 3D tools. The manufacturer's 40-metre depth figure is conditional; geology and target size affect penetration.
KS Analysis KS 700 Ground Penetrating Radar
The KS Analysis KS 700 is an FMCW ground penetrating radar with a fixed antenna for subsurface profiles. Interpret the readings against geology, survey setup and target size.
The manufacturer describes the KS Analysis KS 700 for investigating possible voids and underground structures. Its stated 40-metre depth is site-dependent, not a guarantee for every soil or target.
KS 700 Ground Penetrating Radar FMCW Survey

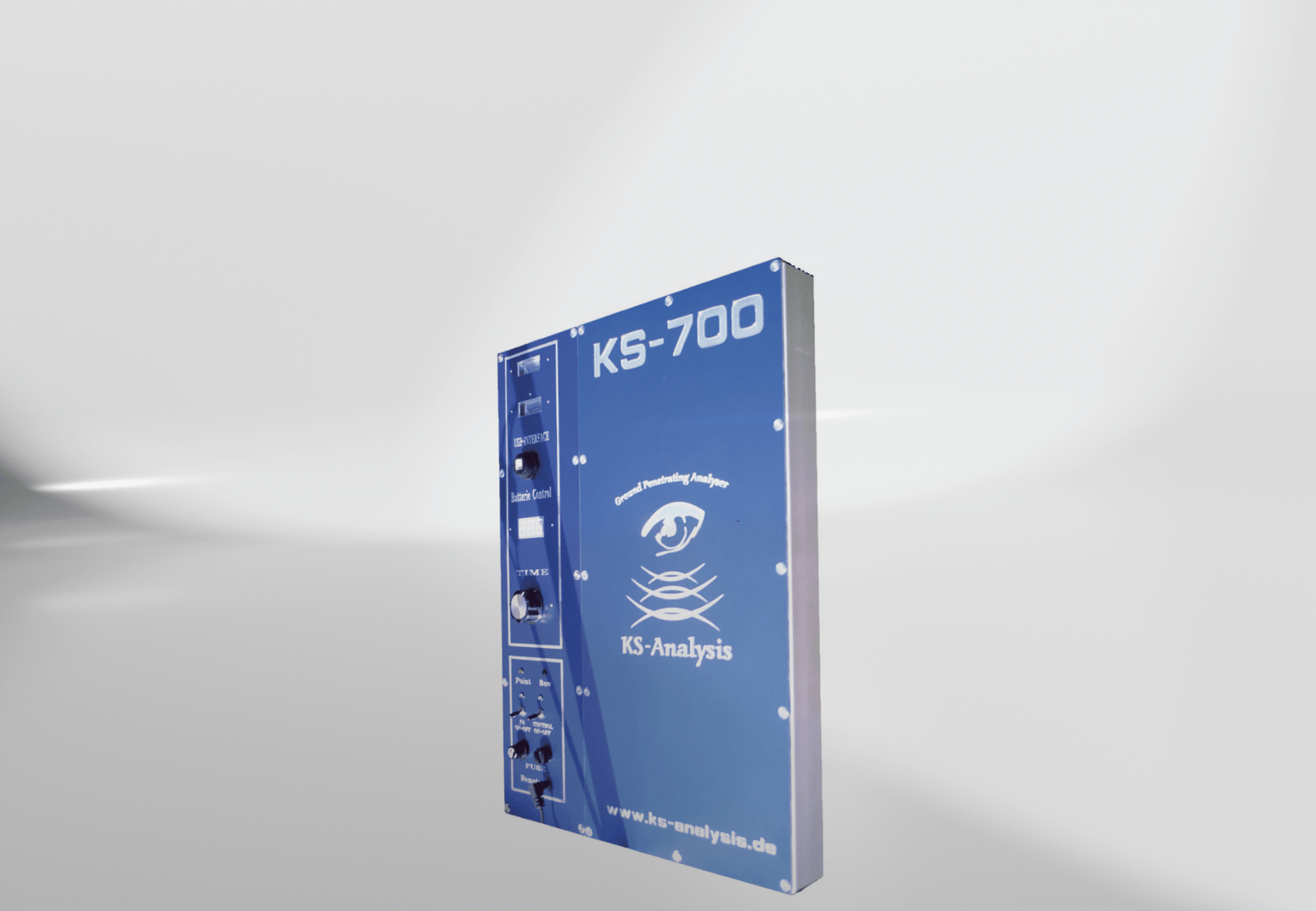

The KS Analysis KS 700 is a survey radar with an integrated shielded antenna. Under suitable conditions its profiles can help investigate large cavities, tunnels and buried infrastructure.
The KS Analysis KS 700 standard description refers to surveys in solid rock to about 40 metres. Reports of deeper large tunnels in limestone do not establish a universal depth for smaller objects.
KS 700 Ground Radar Survey Modes
1. Cavity Detection
Use the KS Analysis KS 700 to investigate possible voids, chambers and tunnels. Cross-check an anomaly with repeat profiles and, where needed, another survey method before excavation.
2. Metal Detection
The KS Analysis KS 700 can also investigate buried metal infrastructure. Radar response depends on depth, conductivity and surrounding material; an image cannot prove whether metal is ferrous or non-ferrous.
3. 2D Real-Time View
The KS Analysis KS 700 provides 2D profiles for field interpretation. Exported data can be reviewed in compatible 3D visualization tools when the necessary software and licence are available.

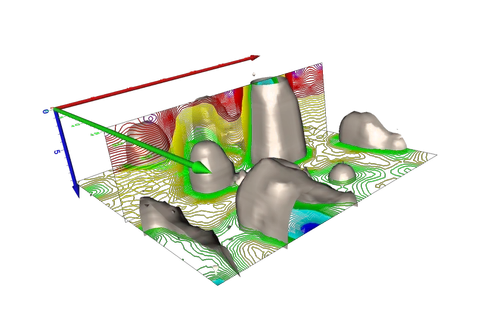

4. 3D Analysis
The KS Analysis KS 700 exports measurements for further modelling in compatible tools. Survey quality still depends on spacing and clear records of each scan path.
KS 700 Ground Penetrating Radar Technical Specifications
| I. System Capabilities | |
|---|---|
| 1. Device Name | KS Analysis KS 700 Ground Penetrating Radar |
| 2. Data Processing | FFT (Fast Fourier Transform) |
| 3. Max Depth Range | Around 40 metres in solid rock; a larger tunnel was reported deeper in limestone |
| 4. Operating System | Windows (Tablet/Laptop req.) |
| 5. Usage | Archaeology, Geophysics, Construction |
| II. Radar Specifications | |
| 6. Radar Type | FMCW (Frequency Modulated Continuous Wave) |
| 7. Sampling Rate | 20ns – 100ns |
| 8. Real-Time Sampling | 1.25 kHz – 50 MHz |
| 9. Max Sampling | 1 GHz |
| 10. Bandwidth | DC – 60 MHz |
| 11. FFT Resolution | 2048 Lines |
| 12. Signal Timing | 1 – 15 Seconds (Adjustable) |
| 13. Interface | USB Data Connection |
| III. Hardware & Physical | |
| 14. Dimensions | 445 x 334 x 120 mm |
| 15. Weight | 5.1 kg (Without battery) |
| 16. Battery Type | 12V 18Ah Lead-Acid/Gel |
| 17. Operating Time | Approx. 8 Hours |
| 18. Antenna Type | Integrated / Shielded |
| 19. Operating Temp | -10°C to 50°C |
| 20. Portability | One-Person Operation |
| 21. Integration | Laptop/Tablet (Not Included) |
| 22. Display | Via External PC Screen |
| IV. Additional Info | |
| 23. Software | “StoneAge” Visualization Suite |
| 24. 3D Compatibility | Voxler / Golden Surfer |
| 25. Setup Time | < 5 Minutes |
| 26. Soil Types | Performance varies with limestone, clay and sand |
| 27. Calibration | Automatic Ground Balance |
| 28. Package Weight | Approx. 15 kg |
| 29. Training | Video Tutorials Included |
| 30. Warranty | 2 Years |
KS 700 Ground Penetrating Radar Package Contents
- 1. Main Control Unit: FMCW radar electronics with USB interface.
- 2. Integrated Antenna: Wideband shielded antenna (no exchange needed).
- 3. High Capacity Battery: 12V 18Ah Gel Battery for extended use.
- 4. 2D Software: “StoneAge” visualization software included.
- 5. 3D Software Capable: Compatible with Voxler (Export function).
- 6. Connection Cables: USB data cable and Battery cable.
- 7. Charger: Automatic fast charger for 12V system.

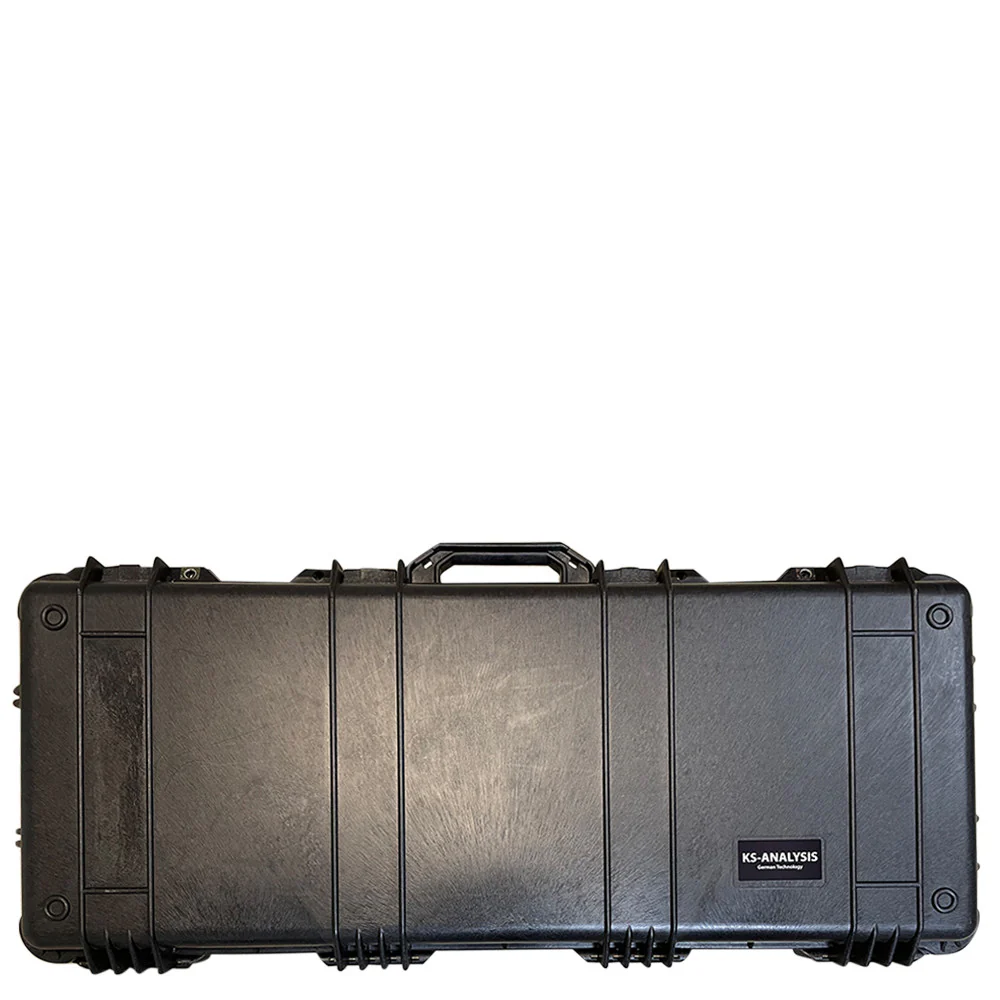

- 8. Carrying Case: Robust protective case for transport.
KS 700 Ground Penetrating Radar Field Demonstration
Share this Device
KS 700 Ground Penetrating Radar Buyer Questions
Q: Why does the KS Analysis KS 700 ground radar use one antenna?
A: The manufacturer describes an integrated antenna on the KS Analysis KS 700, avoiding changes between supported settings. Resolution and penetration still depend on the site and target geometry.
Q: How does the KS Analysis KS 700 compare with the KS 800 ground radar?
A: The KS Analysis KS 700 supports portable 2D and 3D survey review, while the KS 800 adds continuous measurement and automatic recording. Compare the actual software, accessories and workflow.
Q: What ground radar depth does the manufacturer describe for the KS Analysis KS 700?
A: The manufacturer describes up to about 40 metres in solid rock for the KS Analysis KS 700 and a deeper example involving a large tunnel in limestone. Site performance cannot be inferred without considering the ground and target.
“`
