KS Analysis KS 900 Ground Penetrating Radar
The KS Analysis KS 900 is a ground penetrating radar for investigating subsurface anomalies. Interpret its GPR measurements alongside site evidence; depth and detail depend on the ground and survey setup.
The KS Analysis KS 900 supports radar surveys for possible cavities, tunnels and buried structures. It may also show anomalies associated with metal targets, which need follow-up investigation.
KS 900 Ground Penetrating Radar Subsurface Imaging

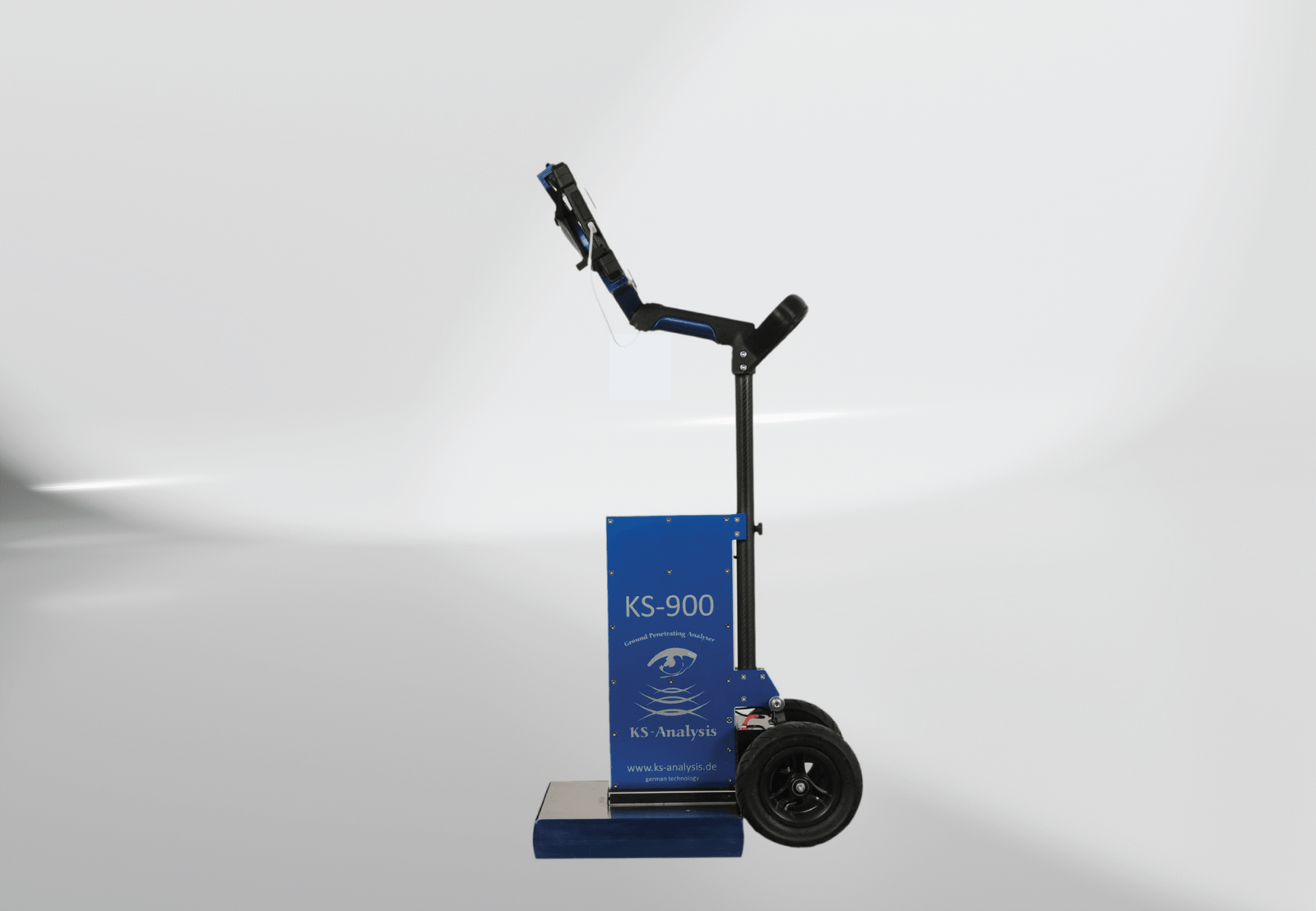

The KS Analysis KS 900 is a mobile subsurface imaging radar. Its profiles can help map changes below ground, but a radar trace alone does not prove the identity of a buried object.
The KS Analysis KS 900 uses a mobile design with an integrated control interface. Follow the ground scanner instructions and keep antenna position and measurement spacing consistent across the survey area.
KS Analysis states that the KS 900 can reach up to 60 metres in suitable limestone. This is a conditional manufacturer claim: wet clay, smaller targets and other ground conditions can reduce useful penetration or detail.
KS 900 Ground Penetrating Radar Survey Method
- 1. FMCW Technology
Frequency Modulated Continuous Wave radar allows for broadband scanning, providing high resolution at shallow depths and extreme penetration for deep targets simultaneously. - 2. Real-Time Visualization
Data is processed instantly on the integrated tablet. Users can switch between 2D cross-section views and 3D volume rendering immediately in the field. - 3. Single-Antenna Design
The ground penetrating radar uses a shielded antenna that covers a wide frequency spectrum, eliminating the need to swap coils for different depths. - 4. All-Terrain Operation

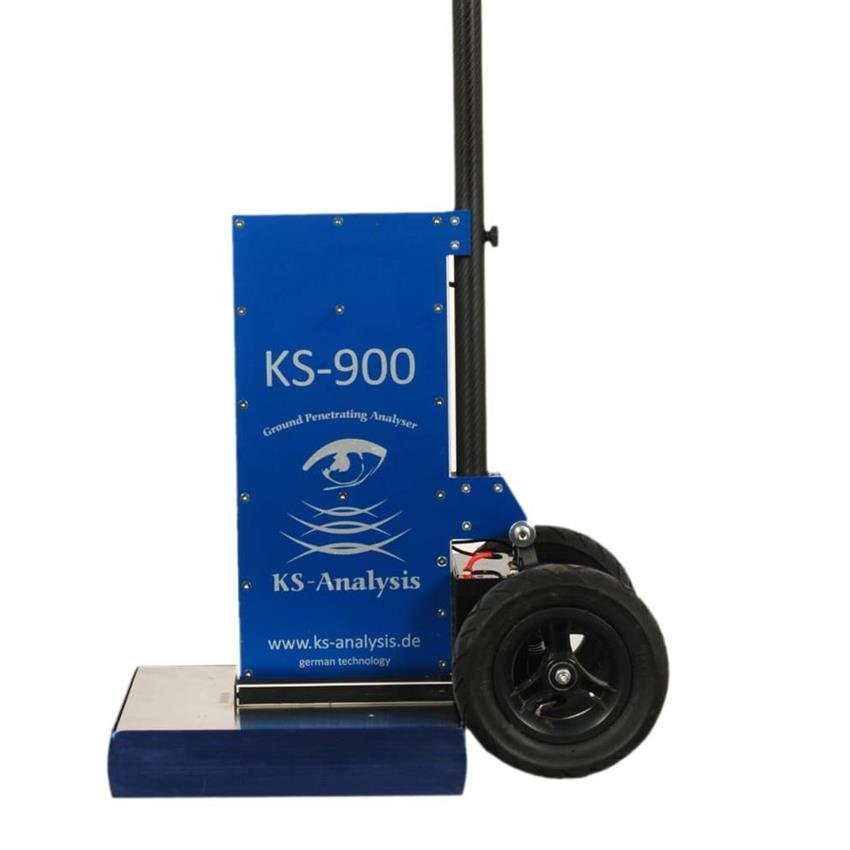

The rugged trolley system is designed for uneven ground, ensuring stable antenna positioning which is crucial for accurate radar data. - 5. Data Export
Scan data can be exported via USB for further analysis in professional geological software like Voxler or Surfer.
KS 900 Ground Penetrating Radar vs KS 700 Ground Penetrating Radar
| Feature | KS 700 Ground Penetrating Radar (Classic) | KS 900 Ground Penetrating Radar (Advanced) |
|---|---|---|
| Control Unit | External PC Required | Integrated Touch Tablet |
| Max Depth | Up to 40 Meters | Up to 60 Meters |
| Portability | Manual Assembly Required | Foldable Trolley System |
| User Interface | Standard Software | Real-Time 3D Visualization |
| Antenna Type | Standard FMCW | Broadband Shielded FMCW |
KS 900 Ground Penetrating Radar Package
- ✔ Ground Penetrating Radar Control Unit (Touchscreen)
- ✔ FMCW Broadband Antenna
- ✔ Collapsible Mobile Trolley
- ✔ 12V Battery Pack
- ✔ Fast Charger (110V/220V)
- ✔ USB Data Cable
- ✔ 3D Visualization Software
- ✔ Rugged Transport Case
KS 900 Ground Penetrating Radar Specifications
| I. General Information | |
| 1. Manufacturer | KS Analysis |
|---|---|
| 2. Country of Origin | Germany |
| 3. Model | KS 900 Ground Penetrating Radar |
| 4. Device Type | Ground Penetrating Radar (GPR) |
| 5. Application | Geology, Archaeology, Void Detection |
| II. Radar Performance | |
| 6. Radar Technology | FMCW (Frequency Modulated CW) |
| 7. Antenna Type | Broadband Shielded Antenna |
| 8. Frequency Range | 30 MHz – 900 MHz (Broadband) |
| 9. Max Detection Depth | Up to 60 Meters (Limestone/Dry) |
| 10. Sampling Rate | Real-time Continuous |
| 11. Calibration | Automatic Ground Adjustment |
| 12. Signal Processing | Digital DSP |
| III. Control Unit & Display | |
| 13. Interface | Integrated Control Box |
| 14. Screen Type | LCD Touchscreen |
| 15. Screen Size | 10 Inches |
| 16. Operating System | Embedded Windows / Linux |
| 17. Visualization Modes | 2D Cross-section, 3D Volume |
| 18. Data Storage | Internal SSD (Expandable) |
| 19. Data Export | USB 3.0 |
| IV. Power & Physical | |
| 20. Battery Type | Sealed Lead-Acid / Li-Ion |
| 21. Voltage | 12V DC |
| 22. Operating Time | Approx. 8 Hours |
| 23. Weight (Assembled) | Approx. 5.5 kg |
| 24. Cart Material | Robust Aluminum/Composite |
| 25. Wheel Type | Off-road Pneumatic Tires |
| 26. Operating Temp | -10°C to +50°C |
| 27. Storage Temp | -20°C to +60°C |
| 28. Protection Class | IP54 (Splash Proof) |
| 29. Assembly | Tool-free Quick Assembly |
| V. Additional Info | |
| 30. Software Included | KS Analysis 3D Suite |
| 31. 3rd Party Software | Compatible with Voxler / Surfer |
| 32. Shipping Weight | Approx. 18 kg |
| 33. Documentation | English/German Manuals |
| 34. Training | Video Tutorials Included |
| 35. Warranty | 2 Years |
KS 900 Ground Penetrating Radar Software
Check the current KS Analysis support information for the KS 900 manual and software for the supplied unit. Review survey data using the correct software version and acquisition settings.
KS 900 Ground Penetrating Radar Demonstration
Share this Device
KS 900 Ground Penetrating Radar Buyer Questions
Q: What depth does KS Analysis list for the KS 900 ground penetrating radar?
A: KS Analysis mentions up to 60 metres in limestone for the KS 900. Radar depth varies with material, moisture, target size and settings, so the figure is not guaranteed on every site.
Q: Does the KS Analysis KS 900 subsurface scanner need a separate laptop for every survey?
A: The KS Analysis KS 900 is described with an integrated touchpad interface for field operation. Check the supplied package and export workflow to determine when an external computer is needed.
Q: Can the KS Analysis KS 900 radar indicate non-metallic underground structures?
A: Ground penetrating radar responds to differences in subsurface electromagnetic properties, so the KS Analysis KS 900 may show cavities, pipes or boundaries. An anomaly is a clue for investigation, not certain identification.
Technical Specifications
| SKU | KS-900 |
|---|
