Lorenz DEEPMAX Z2 Standard Kit Metal Detector for Pulse GBS Metal Detection
The Lorenz DEEPMAX Z2 Standard Kit uses Pulse GBS technology for searches with compatible coils. Target size, coil and ground conditions influence the response; check the included coils and any additional mapping equipment before ordering. Key Features:- Coil choice: The listed standard kit includes a 35 cm DD coil and 1 m × 1 m frame coil.
- Ground balance: Pulse GBS offers adjustable operation in many mineralized or saline environments.
- Mapping: The built-in data logger needs additional hardware and software to generate surface maps.
- Target information: A suitable DD coil supports ferrous/non-ferrous indication and time-delay readings.
Lorenz DEEPMAX Z2 Standard Kit Metal Detector
$9,200 USD
The Lorenz DEEPMAX Z2 Standard Kit uses Pulse GBS for metal searches in varied ground. Coil choice, target size and soil conditions influence the Lorenz Z2 response to buried conductive objects.
Lorenz DEEPMAX Z2 Metal Detector Design
The German-made Lorenz DEEPMAX Z2 is a Pulse GBS metal detector with adjustable settings for mineralized ground. Pair the Lorenz Z2 with compatible coils suited to target size and terrain.
The Lorenz DEEPMAX Z2 standard-kit list includes a 35 cm double-D coil and a 1 m × 1 m frame coil. A smaller Lorenz Z2 coil suits smaller targets; the frame covers more ground and larger objects, with depth dependent on conditions.
The Lorenz DEEPMAX Z2 uses Pulse Shaping Technology and selectable ground-balance settings. Adjust the Lorenz Z2 to the site and consider target size, conductivity and interference when interpreting signals.
Lorenz DEEPMAX Z2 Pulse GBS Metal Detection Technology
- 1. Pulse GBS (Ground Balancing System)
The core technology that ignores ground mineralization and salt water. It transmits powerful magnetic pulses to energize the ground and reads the decay signal of eddy currents in metal objects. - 2. PST (Pulse Scorrning Technology)
A new improvement in the Z2 that refines the signal processing, allowing for greater sensitivity to smaller non-ferrous items and better depth on large targets. - 3. Frame Coils

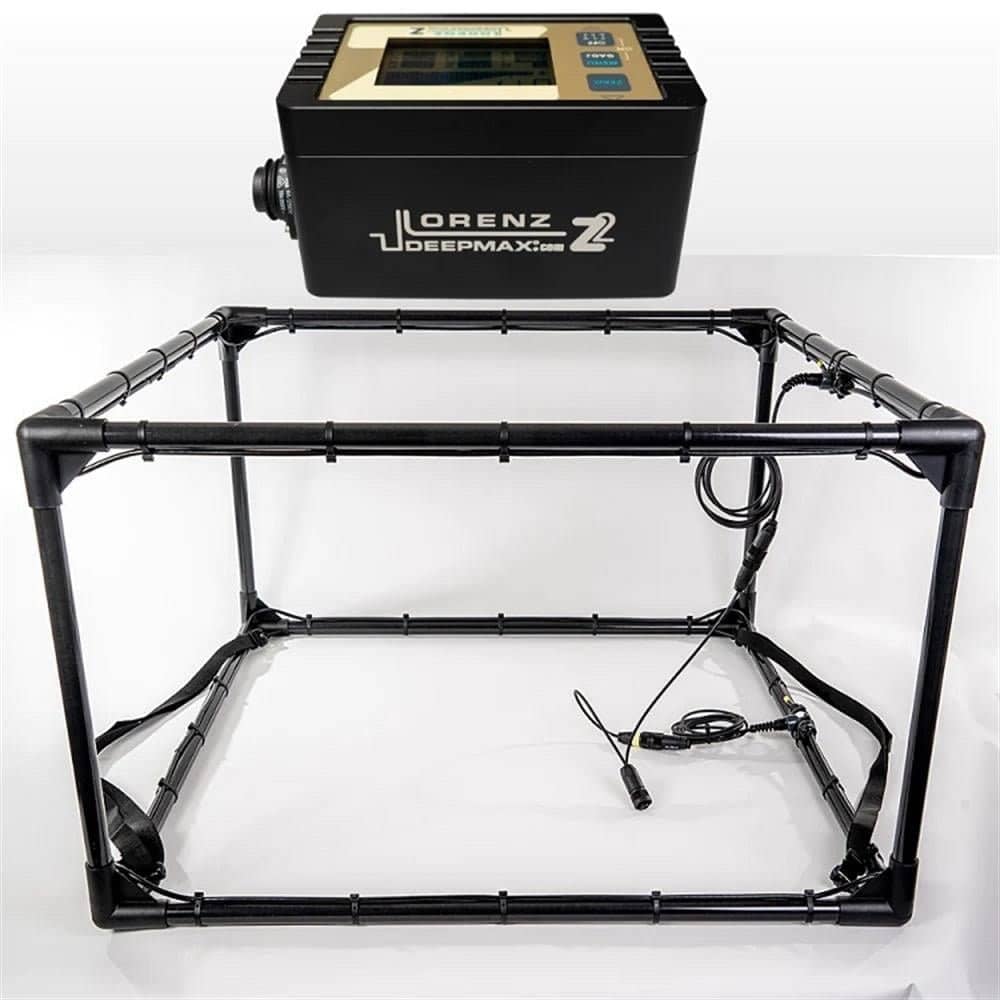

The device is optimized for large search coils. With a frame coil, this metal detector can survey larger buried conductive targets; depth depends on size and ground conditions. - 4. Ferrous / Non-Ferrous ID
Provides a visual indication on the LCD display and audio tone changes to distinguish between iron (ferrous) and precious metals (gold, silver, copper). - 5. Auto Ground Balance
Simple calibration process to cancel out magnetic soils, ensuring the machine stays quiet and only beeps for metal.

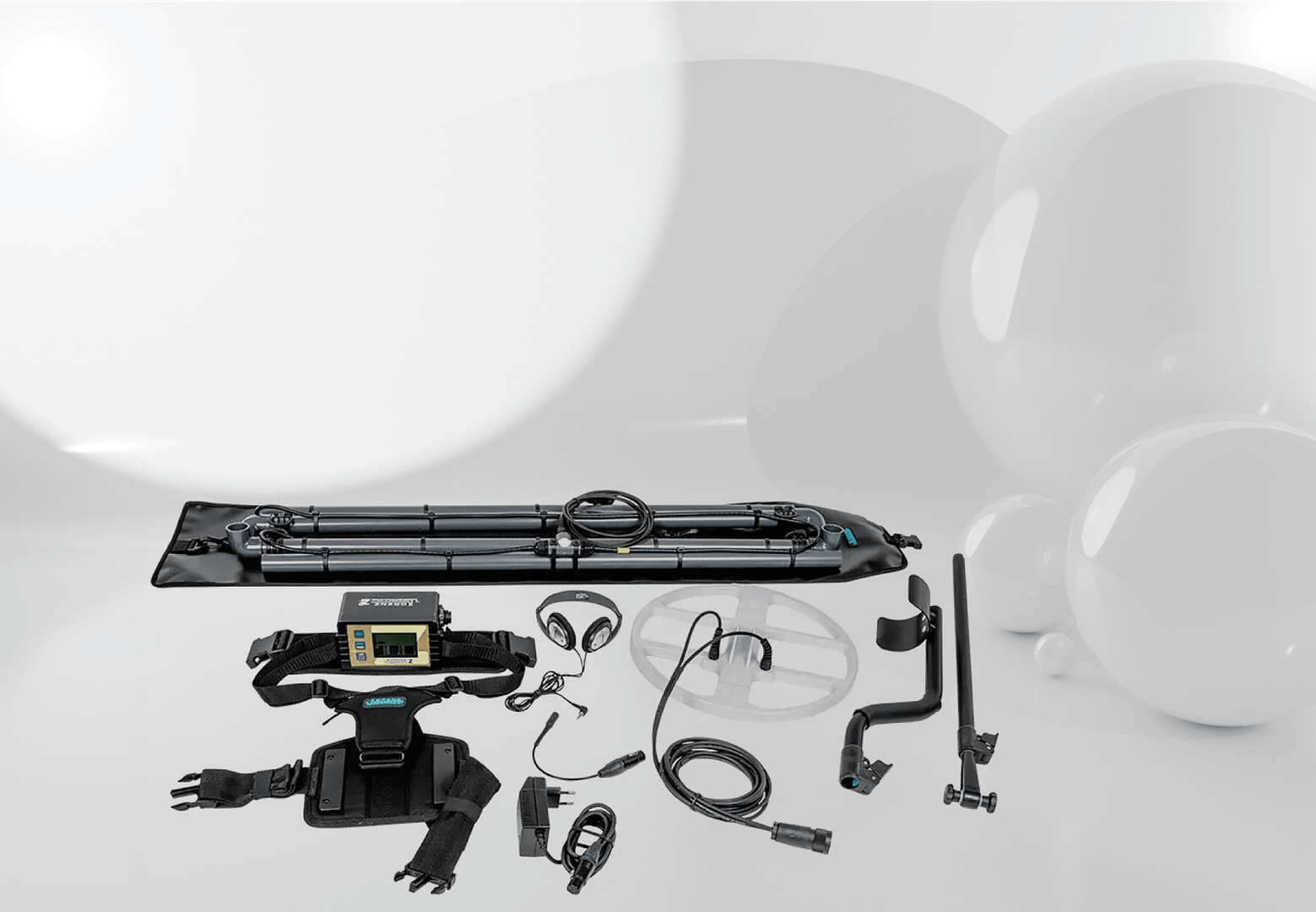

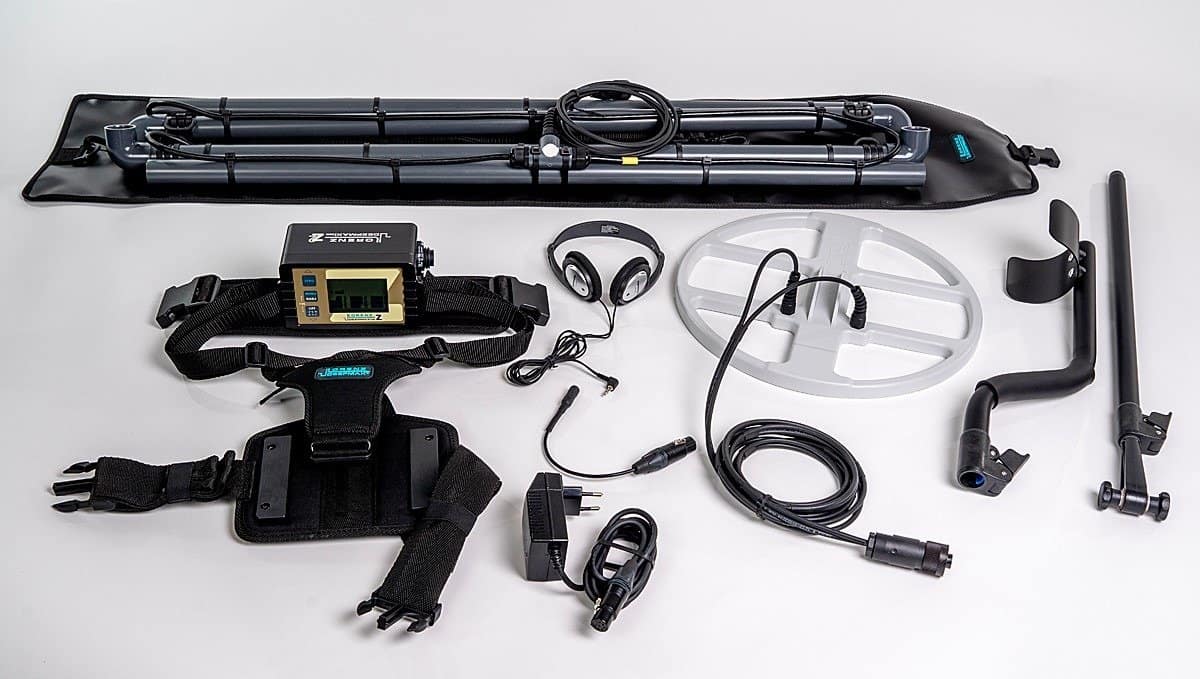

Lorenz DEEPMAX Z2 Metal Detector Standard Kit Contents
- ✔ Z2 Electronics Control Unit
- ✔ 1m x 1m Frame Coil with Cables
- ✔ Carrying Straps & Bag for Frame Coil
- ✔ 35cm DD Search Coil
- ✔ Telescopic S-Pole (3 Rods)
- ✔ Stereo Headphones
- ✔ Fast Charger (100-240V)
- ✔ Adjustable Shoulder & Belt Strap
Lorenz DEEPMAX Z2 Metal Detector Specifications
| System Data | |
| 1. Manufacturer | Lorenz Detecting Systems (Germany) |
|---|---|
| 2. Technology | Pulse Induction (Pulse GBS) |
| 3. Frequency | Pulse GBS (non-motion) |
| 4. Control Unit | Anodized Aluminium, Solid State |
| 5. Display | High Contrast LCD with Backlight |
| 6. Audio Output | Headphones (6.35mm) & Speaker |
| 7. Discrimination | Time Delay Reading (00-99) / Ferrous Icon |
| 8. Coils Included | 35cm DD + 1m x 1m Frame Coil |
| 9. Battery Type | External Rechargeable NiMH Pack (12V) |
| 10. Battery Life | Approx. 5 to 10 Hours (coil dependent) |
| 11. Operating Temp | -5°C to +50°C |
| 12. Dimensions (Box) | 120mm x 122mm x 85mm |
| 13. Package Weight | 9 kg |
| 14. Power Module | Power Bank System (Z2 Battery + Harness) |
| 15. Certification | CE Certified |
| 16. Warranty | 2 Years |
Lorenz DEEPMAX Z2 Metal Detector Field Demonstration
Share this Detector
Lorenz DEEPMAX Z2 Metal Detector Questions
Q: How deep can the Lorenz DEEPMAX Z2 search, and is Lorenz Z2 depth fixed?
A: Lorenz does not give one depth for every Lorenz DEEPMAX Z2 target and coil combination. Consult Lorenz Z2 coil-specific data and test local conditions before planning a survey.
Q: Can the Lorenz DEEPMAX Z2 distinguish iron from non-ferrous metal, and what are the Lorenz Z2 limits?
A: With a suitable double-D coil, the Lorenz DEEPMAX Z2 shows ferrous/non-ferrous information and a time-delay reading. A Lorenz Z2 classification is an interpretation aid, not proof of a particular metal.
Q: Can the Lorenz DEEPMAX Z2 operate near salt water, and should Lorenz Z2 settings be adjusted?
A: Pulse GBS helps the Lorenz DEEPMAX Z2 work in many saline or mineralized conditions. Check coil waterproofing and tune the Lorenz Z2 to the site; noise and target size still affect results.
Q: How does the Lorenz DEEPMAX Z2 differ from the Z1, and what should a Lorenz Z2 buyer compare?
A: Lorenz describes the Lorenz DEEPMAX Z2 as redesigned with updated pulse electronics, ground balance and coil options. Compare the Lorenz Z2 kit and accessories with the earlier model before ordering.
