The Minelab GPX 5000 Gold Detector combines MPS, DVT and SETA pulse-induction processing with eight soil timings, adjustable ground balance and audio controls. This gold detector is designed for natural gold prospecting in varied ground; gold detection depth and sensitivity depend on target, coil, terrain and setup.
Minelab GPX 5000 Gold Detector
The Minelab GPX 5000 Gold Detector uses pulse-induction technology and selectable soil timings for natural gold prospecting. Adjust this gold detector to the ground before assessing a target signal.
The Minelab GPX 5000 Gold Detector combines MPS, DVT and SETA processing with coil options for varied prospecting sites. Gold detection results depend on target size, soil, coil choice and operator settings.
Gold Detector Prospecting Technology
The Minelab GPX 5000 Gold Detector offers eight soil timings, including settings for mineralized and salty ground. This gold detector also provides adjustable ground balance, audio and iron rejection controls.
The Minelab GPX 5000 Gold Detector allows the operator to match sweep speed, audio response and sensitivity to the site. For reliable gold detection, repeat promising signals from more than one direction and adjust settings to manage interference.
Gold Detector Soil Timings
- 1. Fine Gold Timing
Gives even more depth and sensitivity than “Enhance” — bring home more nuggets even from ground thought to be completely worked out! - 2. Salt/Gold Timing
Great for all nugget sizes in salty ground — outstanding performance at the beach! - 3. Coin/Relic Timing
The deepest ever timing for benign ground conditions, perfect for deep cache hunting. - 4. Improved Enhance Timing
Offers more depth for general detecting, along with the standard timings from previous models.
Gold Detector Controls
Gold Detector Audio Adjustments
The Minelab GPX 5000 Gold Detector has adjustable threshold, tone, signal peak, target volume and stabilizer controls. Tune this gold detector’s audio so weak signals can be compared without excessive background noise.
Gold Detector Ground Balance
The Minelab GPX 5000 Gold Detector offers Fixed and Tracking ground-balance options with a Quick-Trak control. Ground balance is part of gold detection setup, especially where mineralization changes along the survey path.
Gold Detector Iron Rejection
The Minelab GPX 5000 Gold Detector provides adjustable iron rejection for sites with discarded ferrous metal. Do not rely on this gold detector control alone to identify a target; confirm a repeatable signal before digging.
Gold Detector Motion Control
The Minelab GPX 5000 Gold Detector lets the operator adjust Motion to suit the sweep speed. A consistent coil height and speed can improve gold detection decisions in difficult ground.

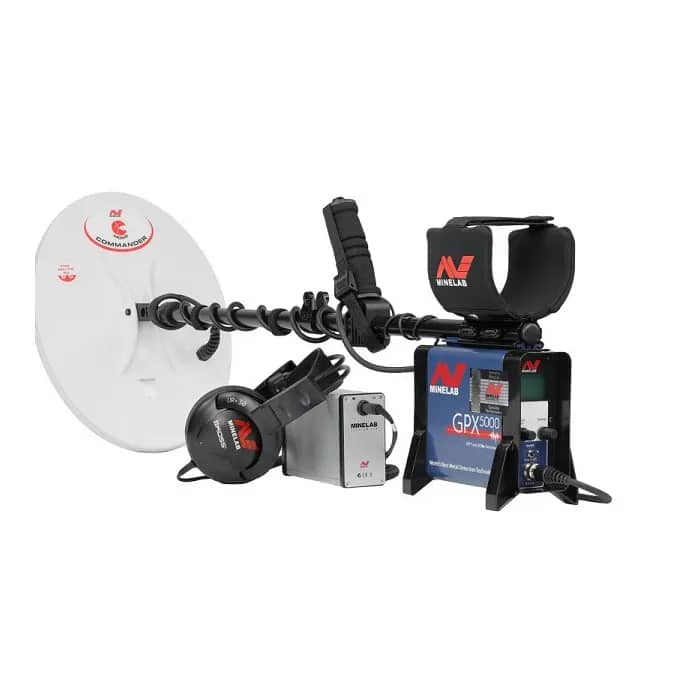

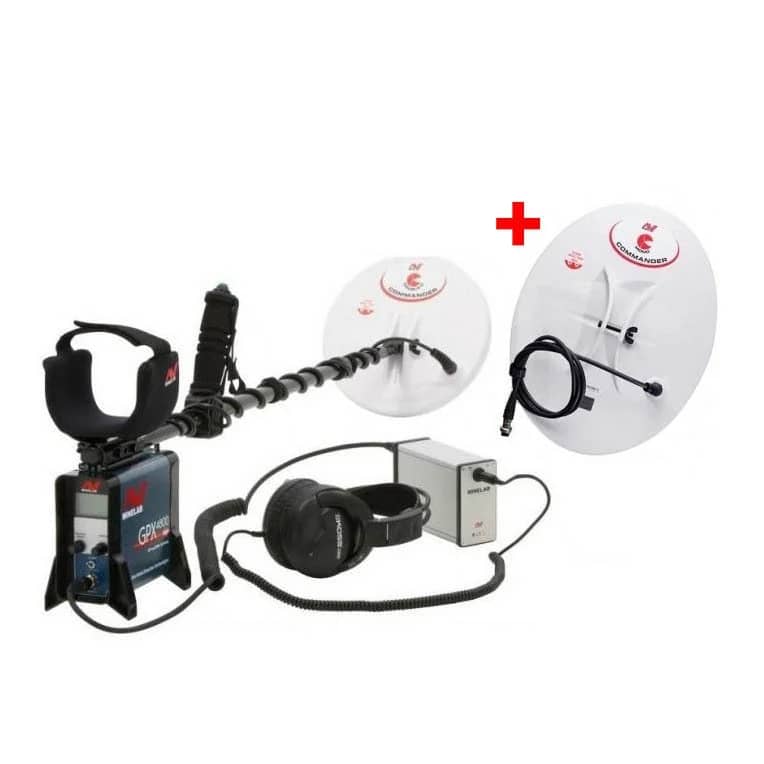

Gold Detector Package Contents
- ✔ GPX 5000 Control Unit
- ✔ 11″ Double-D Coil
- ✔ 15 x 12″ Monoloop Coil
- ✔ Lightweight Li-ion Battery
- ✔ Battery Harness & Cables
- ✔ User Manual
Gold Detector Technical Specifications
Gold Detector Detailed Specifications
| 1. Application | Gold Prospecting, Deep Relic, Beach |
|---|---|
| 2. Technology | MPS, DVT & SETA |
| 3. Frequency/Transmission | Bi-Level, Advanced Pulse Induction |
| 4. Timings | 8 Timings (Inc: Fine Gold, Salt/Gold, Coin/Relic) |
| 5. Search Modes | 6 Preset (General, Deep, Hi-Mineral, Patch, Hi-Trash, Pinpoint) |
| 6. Ground Balance | Auto (Fixed, Tracking, Quick-Trac) |
| 7. Sensitivity (Rx Gain) | Adjustable (1 to 20) |
| 8. Tune / Noise Cancel | Automatic & Manual (0 to 255) |
| 9. Audio Type | Quiet, Normal, Deep, Boost |
| 10. Battery | Li-ion Rechargeable with Speaker Booster |
| 11. Display | LCD with Backlight (Adjustable Timeout) |
| 12. Headphones | Koss 100 ohm supplied |
| 13. Weight | 2.4kg (5.3lbs) including 11″ coil |
| 14. Warranty | 3 Years Control Box & Coil |
Share this Device
Gold Detector Frequently Asked Questions
Q: Which technologies does the Minelab GPX 5000 Gold Detector use for gold detection?
A: The Minelab GPX 5000 Gold Detector uses Multi Period Sensing, Dual Voltage Technology and Smart Electronic Timing Alignment. These technologies support gold detection across varied soil conditions, but no setting guarantees a find.
Q: Which coils are supplied with the Minelab GPX 5000 Gold Detector for gold detection?
A: Minelab’s standard GPX 5000 Gold Detector specification lists 11-inch Double-D and 11-inch Monoloop coils. Dealer bundles for gold detection can vary, so confirm the exact coil sizes and package contents with the seller before ordering.
Q: Which soil timings are available on the Minelab GPX 5000 Gold Detector for gold detection?
A: The Minelab GPX 5000 Gold Detector offers eight timings, including Fine Gold, Salt/Gold and Coin/Relic. Choose the timing for the ground and target; gold detection performance changes with mineralization and interference.
