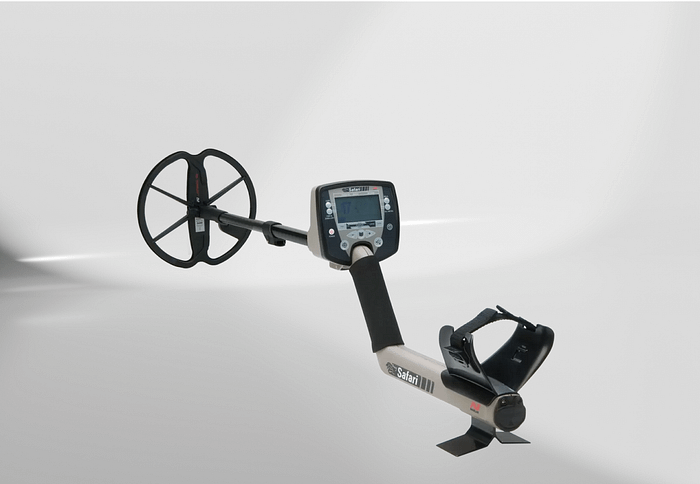

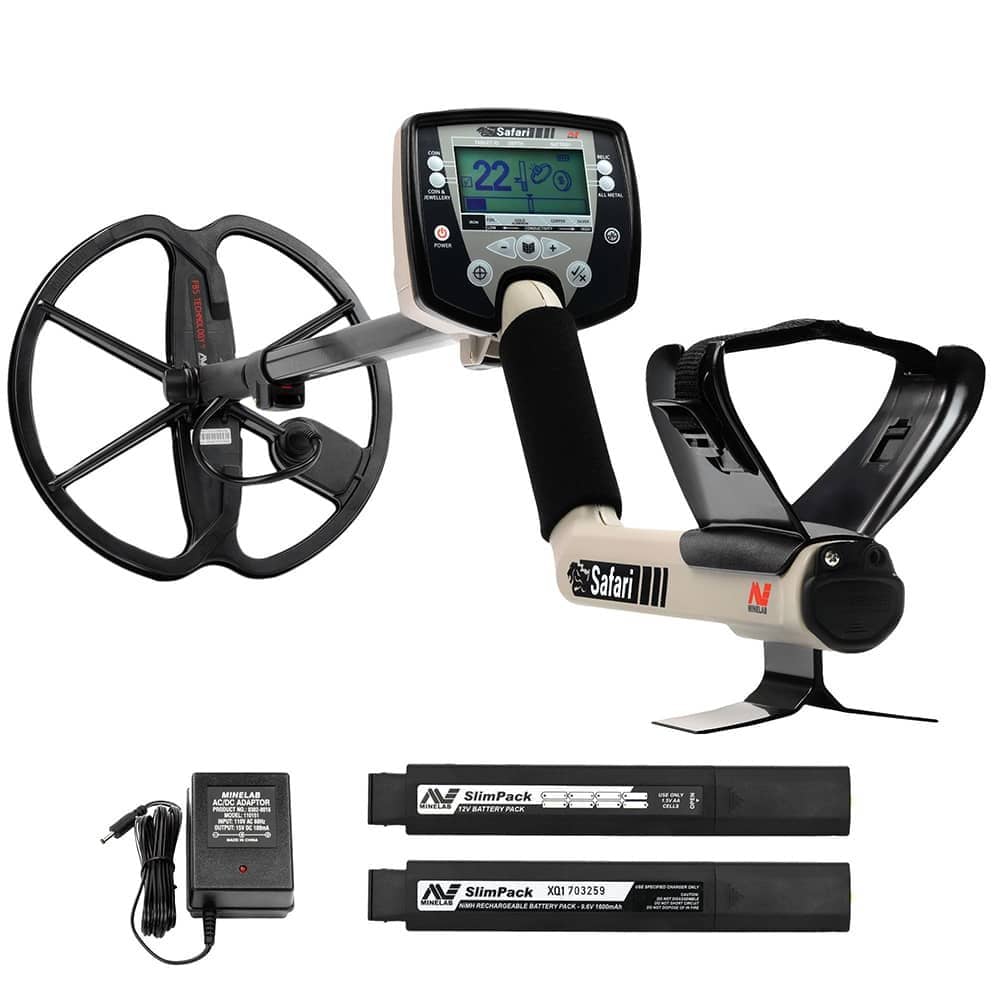

Minelab Safari

Minelab Safari Detector Features

This detector features Minelab FBS technology. Its sensitivity and detection provide ease of use and high performance. It eliminates unwanted metal signals with advanced digital filtering. Terrain is irrelevant to Minelab Safari. It can operate in all terrains under suitable conditions. Its pinpoint feature allows you to focus on and separate targets.

Minelab Safari Detector Also

There are 4 search modes on it; * Single Coin * Ancient Relics * Precious * All Metals

These mods will always help you in your search.

Metal detectors create an electromagnetic (EM) field around the coil, which penetrates the ground. Because metal is conductive it causes a change in this field. The detector senses this change through the coil and sends a signal back to the control box, alerting the operator. Metal detectors can determine the size, shape and composition of metallic objects beneath the coil. Typically, the larger the object, the easier it is to detect. A metal detector’s EM operating frequencies are measured in kilohertz (kHz). Low frequency EM fields (e.g. 1.5kHz) penetrate the ground deeply, but sensitivity to smaller targets is low. High frequency EM fields (e.g. 65kHz) have a shallower depth of penetration, but sensitivity to small targets is high. Safari’s multiple frequency operation provides the advantage of both; good depth and high sensitivity.

Full Band Spectrum (FBS) Most detectors on the market operate on a single or dual frequency, ranging from 1 to 70 kilohertz (kHz). Although this technology has served the industry well for years, Minelab found that a frequency that worked well in one area would often offer only marginal performance when used in another location. Ground mineralisation, trash content and target size all had an impact on how effectively a detector transmitting a single frequency would operate. FBS technology combines Minelab’s multiple frequency BBS (Broad Band Spectrum) technology with a powerful new microprocessor to give: • Greater detecting depth • High sensitivity over a wide range of targets • Less interference from electromagnetic sources • More accurate identification of target characteristics The FBS circuit automatically transmits multiple frequencies simultaneously. This increased frequency range means that the signal received from the detector coil is analysed from a wide range of responses. This allows Safari to analyse more target information so that the target identification (ID) is more accurate. Minelab’s unique FBS technology means deep, sensitive, accurate detecting. Discrimination (Disc.) Discrimination is the ability of a metal detector to identify your desired targets (e.g. coins and jewellery) and eliminate signals from undesirable material (e.g. nails). Safari can be programmed in a number of ways to discriminate against unwanted targets in different types of ground. Ground Compensation Safari uses a sophisticated approach for the elimination of ground mineralisation effects. It uses advanced digital filtering to eliminate the influence of ground signals. This is achieved automatically, allowing you to concentrate on detecting targets.

Here are the main technology highlights of the Minelab Safari metal detector:

Core Technologies & Features

FBS (Full Band Spectrum) Technology

• Transmits multiple frequencies simultaneously (1.5 kHz to 100 kHz).
• Enhances depth detection and target identification across various soil types.

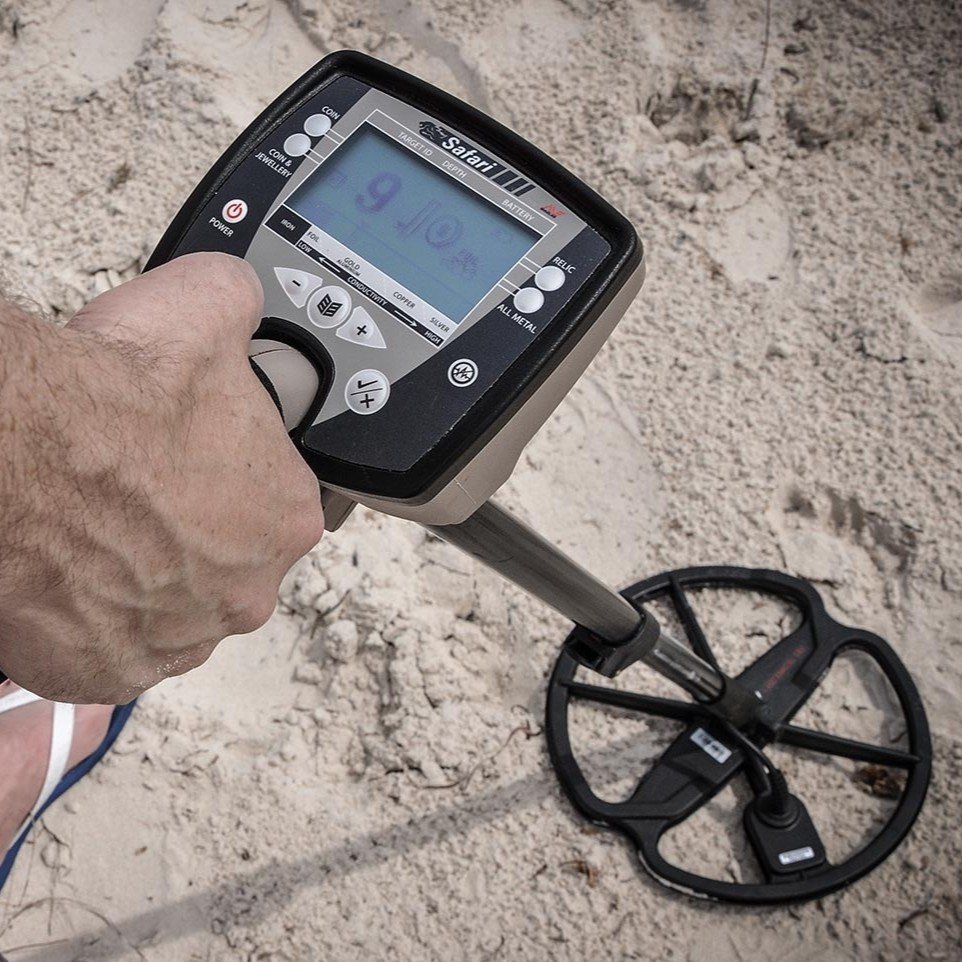

Advanced Target ID System

• Target ID Range: –10 to +40
• Graphic Identification Bar: Shows accepted vs. rejected targets visually.
• Target Cursor: Moves dynamically to indicate conductivity level.
• Target Icons: Displays common object types (coins, rings, foil, etc.).

Improved Trash Density Handling

• Enhanced discrimination and audio response in cluttered environments.
• Ideal for detecting in areas with high iron content or mixed metals.

Audio & Pinpointing

• VCO-style pinpoint audio: Variable pitch for precise location.
• Threshold Control: Background hum helps identify discriminated targets.
• Target Volume: Adjusts signal volume independently of overall volume.

User Interface & Display

• Intuitive menu system with tactile buttons.
• Contrast adjustment for visibility in different lighting.
• Depth gauge updates in real-time during detection.

Performance Settings

• Sensitivity: Adjustable for terrain and target size.
• Noise Cancel: Selects stable operating channel in noisy environments.
• Discrimination Patterns: Customizable or preset for different search profiles.
