Vertex VX500 Pinpointer
Price: $275 USD
✅ Available in Stock – Ready for Shipping Today
“Rapid Target Recovery & Fully Waterproof Precision”
Pinpoint Precision Redefined
The Vertex VX500 Pinpointer is an essential tool for any serious detectorist, designed to speed up target recovery time significantly. Stop wasting time digging large holes; the VX500 precisely locates coins, rings, jewelry, and relics right in the dirt or sand walls of your hole. Its robust design ensures reliable performance in the toughest environments.
Built to be fully submersible, the VX500 features an IP68 waterproof rating, allowing underwater use up to 3 meters (10 feet) deep. It features 360-degree side-scan detection area and a precise tip, along with adjustable sensitivity settings to adapt to highly mineralized soil or saltwater conditions.
With intuitive one-button operation, integrated LED flashlight for low-light hunting, and dual audio/vibration alerts that intensify as you approach the target, the Vertex VX500 is the ultimate companion for your main metal detector.
Functions & Technology
- 1. IP68 Waterproof Design
Rugged construction sealed against dust and water. Fully submersible up to 3 meters (10 feet), making it ideal for rivers, beaches, and wet weather hunting. - 2. 360° Detection & Precision Tip
Features a large detection area along the sides of the probe for quickly scanning hole walls, plus a pinpoint tip for precise localization before digging. - 3. Proportional Audio/Vibration Pulse

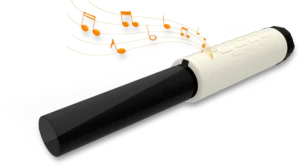

The audio rate and vibration intensity increase as the probe gets closer to the target, providing intuitive feedback on target proximity. - 4. One-Touch Retune & Sensitivity
Single button operation to power on/off. Quickly retune the device to narrow down detection or cancel out ground mineralization. Adjustable sensitivity for various soil conditions. - 5. Lost Pinpointer Alarm & LED
If left inactive, the device emits a lost alarm beacon sound to help you find it. Includes a bright white LED for low-light recovery work.
Model Comparison
What’s in the Box?
- ✔ Vertex VX500 Pinpointer Unit

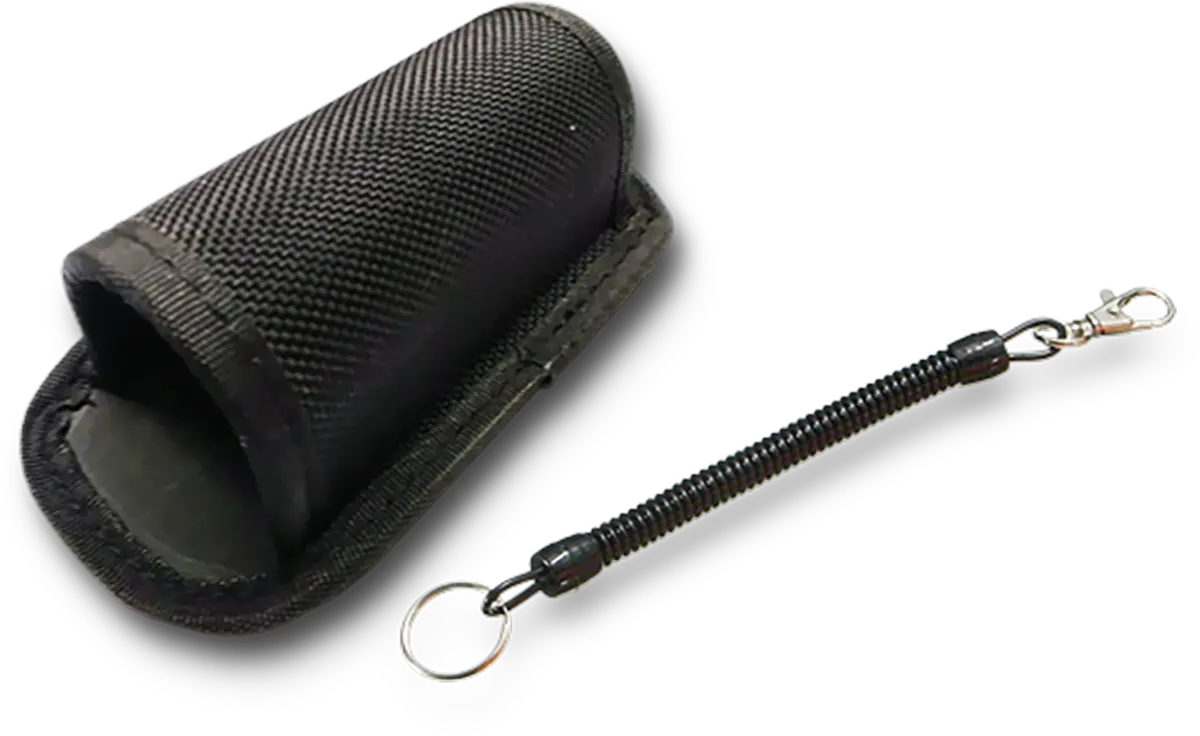

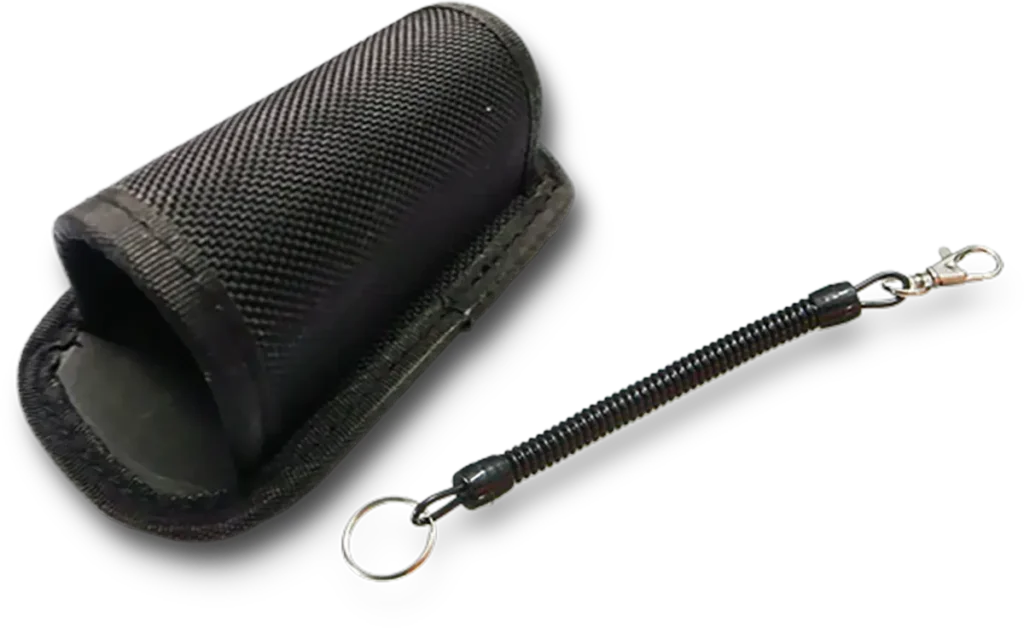

- ✔ Premium Belt Holster
- ✔ Security Lanyard
- ✔ 9V Battery (Starter)
- ✔ User Manual & Warranty Card
- ✔ Rugged Gift Box
Technical Specifications
| I. General & Performance | |
| 1. Manufacturer | Vertex Detectors |
|---|---|
| 2. Country of Origin | Germany (Engineering) |
| 3. Model | VX500 |
| 4. Technology Type | VLF (Very Low Frequency) |
| 5. Operating Frequency | ~12 kHz |
| 6. Detection Pattern | 360° Side & Precision Tip |
| 7. Targets Detected | All Ferrous & Non-Ferrous Metals |
| 8. Sensitivity Control | Automatic & Adjustable |
| 9. Tuning | Automatic or One-Touch Retune |
| II. Indicators & Alerts | |
| 10. Audio Alert | Yes, Proportional Pulse Rate |
| 11. Vibration Alert | Yes, Proportional Intensity |
| 12. Simultaneous Mode | Audio + Vibration Available |
| 13. LED Flashlight | Yes, Bright White LED |
| 14. Lost Alarm | Yes (Audible Beacon after inactivity) |
| 15. Low Battery Indicator | Audio Warning Tone |
| III. Power & Battery | |
| 16. Battery Type | 1x 9V (Alkaline recommended) |
| 17. Rechargeable Support | Yes (if using 9V NiMH/Li-ion) |
| 18. Voltage Range | 7V – 9.6V |
| 19. Operating Time | Approx. 20 Hours (Alkaline) |
| 20. Battery Access | Tool-free Twist Cap (O-Ring Sealed) |
| 21. Auto Power Off | Yes, after lost alarm sequence |
| IV. Physical & Environmental | |
| 22. Device Weight | Approx. 190 g (with battery) |
| 23. Length | 24 cm (9.5 inches) |
| 24. Grip Diameter | 3.8 cm (Max at handle) |
| 25. Operating Temp | -10°C to 60°C |
| 26. Storage Temp | -20°C to 70°C |
| 27. Waterproof Rating | IP68 |
| 28. Submersion Depth | Up to 3 Meters (10 Feet) |
| V. Build Features & Support | |
| 29. Housing Material | Rugged ABS Polycarbonate |
| 30. Scraping Blade | Integrated into detection tip |
| 31. Attachment Point | Molded Lanyard Loop |
| 32. Warranty | 2 Years Limited |
Vertex VX500 Video Demonstration
Share this Device
Frequently Asked Questions
Q: How deep can the VX500 go underwater?
A: The Vertex VX500 is IP68 rated and fully submersible up to a depth of 3 meters (10 feet).
Q: What type of battery does it use?
A: It operates on a standard single 9V battery (Alkaline recommended for best performance). The battery is not included in the box.
Q: Does it have adjustable sensitivity?
A: Yes, the VX500 features adjustable sensitivity levels to help eliminate interference from highly mineralized soil or saltwater sand.
