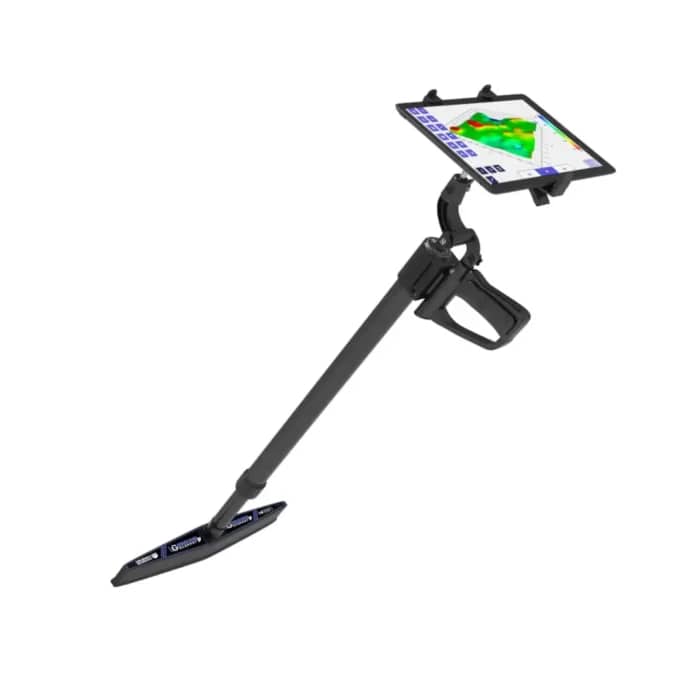

UIG GROUND SCANNER

The UIG GROUND SCANNER: A detector for buried gold, treasures, ancient artifacts, precious metals, archaeological treasures, passages, tunnels, caves, and voids underground.

We present to explorers and excavation the latest underground imaging technology, allowing a comprehensive scan of ground layers and obtaining a three-dimensional representation of the detected target. The UIG GROUND SCANNER, a multi-system device for underground exploration, brings together the advanced technologies of GER Detect and UIG Detectors. Our experts developed the UIG GROUND SCANNER to address the challenges faced by researchers using traditional devices in the market.

a single device operates with three different search systems.

Specifications and search systems of the UIG GROUND SCANNER:

3D Imaging System: Innovative technical specifications have been introduced to this system, capturing images of all layers of the ground. The results are displayed from all directions on the device screen, clarifying the detected target’s approximate shape. It reveals gold, precious metals, buried treasures, caves, voids, and all hidden elements underground’s surface. Additionally, it provides the depth of the discovered targets in meters and centimeters.

Live Ground Scan System: The system offers a quick and direct scan of the underground target’s location, instantly identifying the type of treasure or void. When a metallic target is detected, the area changes from green to gradually transitioning red, with the red indicator on the graph rising, accompanied by a sound indicating the presence of metal underground. For void detection, the area transitions from green to gradually blue, with the blue indicator on the graph decreasing, accompanied by a distinct sound indicating the presence of a void.

Live Wall Scan System:Similar to the live Ground Scan System, this system provides a quick and direct scan of the target behind walls, instantly identifying the type of treasure, voids, passages, and hiding places. During the scanning process.

previousnext

Characteristics and features of the UIG GROUND SCANNER:

– Operates in six languages: English – Arabic – Spanish – French – German – Portuguese – Persian.

– Depth of search up to 30 meters underground, with the capacity to specify the depth of targets underground in meters and centimeters. – Automatic operating system unaffected by soil types: wet, rich in mineral salts, metallic rocks, or basalt rocks. It can bypass all types of metallic rocks using automatic calibration technology. The UIG GROUND SCANNER has been developed to function in various terrains and under challenging climatic conditions with ease. holding both the European CE certificate and the international ISO 9001 certificate. A true exploration journey doesn’t require you to go to new lands but rather see with new eyes.

The technical specifications

Dimensions	Device without sensor (Closed) 575 mm
	Device with sensor (Closed) 600 mm
	Device with sensor (opened) 880 mm
Bluetooth	2.4 GHz Radio
Data processing speed	72 MHz
Operating Temperature Range	0 C° to 70 C°
Operating Humidity Range	Up to 95 % non-condensing
Storage Temperature Range	–  20C° to 70C°
Storage Humidity Range	Up to 98 % Relative Humidity
Operating Time (27 Wh Battery)	10 Hours
Waterproof Rating – Detector	Not waterproof (weatherproof only)
BT144 Battery Technical Specifications
Type	Rechargeable Battery – External Battery
Output Voltage	Li-ion 10.8 VDC
Capacity	Li-ion 27 Wh
Run Time	10 Hours
Battery Operating Temperature	0 C° to 50 C°
Battery Storage Temperature	–  5C° to 70C°
Battery Charger Technical Specifications
Operating Temperature	0 C° to 50 C°
Storage Temperature	–  30 C° to 80 C°
Input Voltage	90 → 250 VAC   50→60 Hz
USB Output Current	5 VDC / 2100 mA
Other Technical Specifications
Total weight	3900 g
Device weight	1100 g
Battery weight	330 g
Bag weight (empty)	2230 g
Bag dimensions	635 mm x 335 mm x 145 mm
