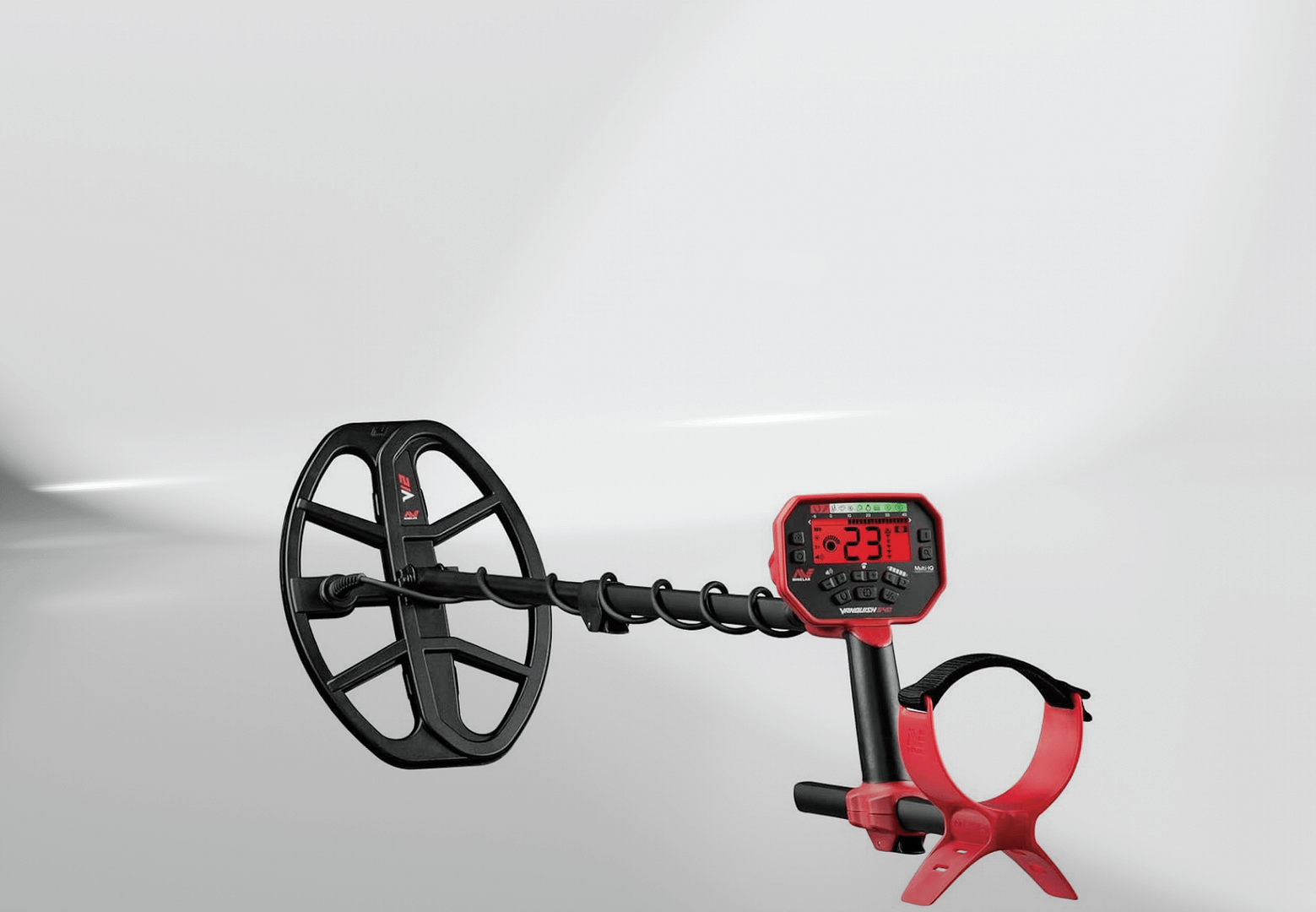

Introduction to the VANQUISH 540
VANQUISH 540 metal detector is designed for serious detectorists demanding ultimate performance. It features Minelab’s revolutionary Multi-IQ technology, allowing simultaneous multi-frequency detection for superior performance across all soils and conditions. With audio control, pinpoint mode, iron-bias control, red LED backlight, and rechargeable batteries, it’s built for versatility and ease of use. The standard waterproof 12” coil provides greater depth, making it ideal for park, field, or beach hunting, and it dominates in wet sand and saltwater conditions. Its lightweight design with a collapsible snap-lock system makes it easy to pack and carry.
Introduction and Overview:
The VANQUISH 540 is designed for serious detectorists demanding ultimate performance. It features Minelab’s revolutionary Multi-IQ technology, allowing simultaneous multi-frequency detection for superior performance across all soils and conditions. With audio control, pinpoint mode, iron-bias control, red LED backlight, and rechargeable batteries, it’s built for versatility and ease of use. The standard waterproof 12” coil provides greater depth, making it ideal for park, field, or beach hunting, and it dominates in wet sand and saltwater conditions. Its lightweight design with a collapsible snap-lock system makes it easy to pack and carry, as noted on Vanquish 540.
Technology and Operating Principle:
Multi-IQ technology combines the power of multiple frequencies to detect all metals across all soils simultaneously. This ensures no target is missed and no terrain is off limits, whether it’s silver, gold, or jewelry in parks, fields, or on beaches. It cuts through challenging conditions like salty, trashy, or mineralized soil, delivering stable and solid IDs at depth, as detailed on Minelab Vanquish 540.
Search Modes and Frequencies:
The detector offers four search modes: Coin, Relic, Jewellery, and Custom (with savable settings), each optimized for different targets and environments. It operates on Multi-IQ technology, which uses simultaneous multi-frequency detection. While exact frequencies (e.g., 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz) are not consistently confirmed, the technology likely includes a range of low, medium, and high frequencies, as inferred from Vanquish 540.
Sensitivity and Detection Depth:
The Vanquish 540 features adjustable sensitivity with 10 levels, allowing users to adapt to various ground conditions and target sizes. The 12” V12 coil provides greater depth, though exact depths vary by target size and soil conditions, as noted in product descriptions.
Target Identification and Filtering:
The detector provides Target ID numbers from –9 to 40, with 25 discrimination segments for filtering unwanted targets. Iron-bias control (High or Low settings) helps distinguish treasure from trash, enhancing user control, as specified in the product specifications.
Ground Balancing and Mineralization Handling:
Multi-IQ technology automatically handles ground balancing, making the Vanquish 540 suitable for various soil mineralizations without manual adjustment. This is particularly advantageous in challenging conditions like wet sand or mineralized soils, as per Minelab Vanquish 540.
Audio and Connectivity:
The detector offers audio control with 10 volume levels and automatic noise canceling to reduce interference. Audio output options include an in-built loudspeaker, wired 3.5 mm headphones, or Bluetooth wireless headphones (Pro-Pack). Bluetooth uses aptX™ Low Latency for high-quality, lag-free audio, as noted in the specifications.
Display and User Interface:
The Vanquish 540 features a monochrome LCD display with a red backlight, ensuring readability in various lighting conditions. The user interface is intuitive, with buttons for mode selection, sensitivity, and other adjustments, making it accessible for both beginners and experienced users, as described on Vanquish 540.
Coil Options and Accessories:
The standard coil is the V12 12”x9” Double-D, waterproof up to 1m, suitable for deeper detection. The Pro-Pack includes the V8 coil for precision in confined areas. Optional accessories like the PRO-FIND 35 Pinpointer and ML-80 Wireless Headphones enhance functionality, as listed in the accessories section.
Build Quality and Environmental Durability:
Weighing 1.3kg (2.8 lbs), the detector is lightweight and features a collapsible snap-lock system for easy transport. The control box is water-resistant with the included rain cover, and the coil is fully waterproof up to 1m, making it suitable for harsh conditions, as per the specifications.
Power and Battery Life:
The detector uses 4 × AA NiMH rechargeable batteries, providing up to 11 hours of operation on a full charge. High-quality AA alkaline batteries offer approximately 10 hours, as noted on Minelab Vanquish 540.
Environmental Specifications and Water Resistance:
The coil is waterproof up to 1m (3.3 ft), allowing shallow water detecting, while the control box is water-resistant with the rain cover attached. The detector operates in temperatures from –10°C to +40°C (+14°F to +104°F) and can be stored from –20°C to +70°C (–4°F to +158°F), as per the specifications.
Software and System Updates:
Firmware updates are available via USB, ensuring the detector remains up-to-date with performance improvements, inferred from industry standards for similar Minelab devices.
Use Cases and Applications:
The Vanquish 540 is ideal for coin shooting, relic hunting, jewelry searching, and general treasure hunting. Its Multi-IQ technology makes it effective in diverse environments, including wet sand and saltwater beaches, as suggested by product descriptions and user reviews on Minelab Vanquish 540 Reviews.
Package Contents and Warranty:
Vanquish 540 Standard Package
- Minelab Vanquish 540 metal detector
- V12 12" × 9" Double-D waterproof search coil with coil cover
- Wired headphones (3.5 mm jack)
- 4 × AA NiMH rechargeable batteries
- Battery charger
- Control box rain cover
- Arm strap
- Getting Started Guide

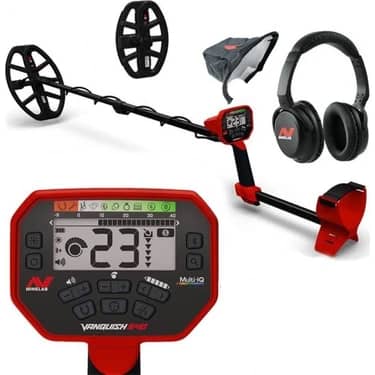

Vanquish 540 Pro-Pack
- Minelab Vanquish 540 metal detector
- V12 12" × 9" Double-D waterproof search coil with coil cover
- V8 8" × 5" Double-D waterproof search coil with coil cover
- Wireless Bluetooth headphones
- 4 × AA NiMH rechargeable batteries
- Battery charger
- Control box rain cover
- Arm strap
- Getting Started Guide
