The Minelab EQUINOX 800 Metal Detector combines Multi-IQ with Park, Field, Beach and Gold search modes and is rated waterproof to 3 metres. This metal detector includes adjustable audio and target settings; confirm the supplied bundle and warranty terms before purchase.

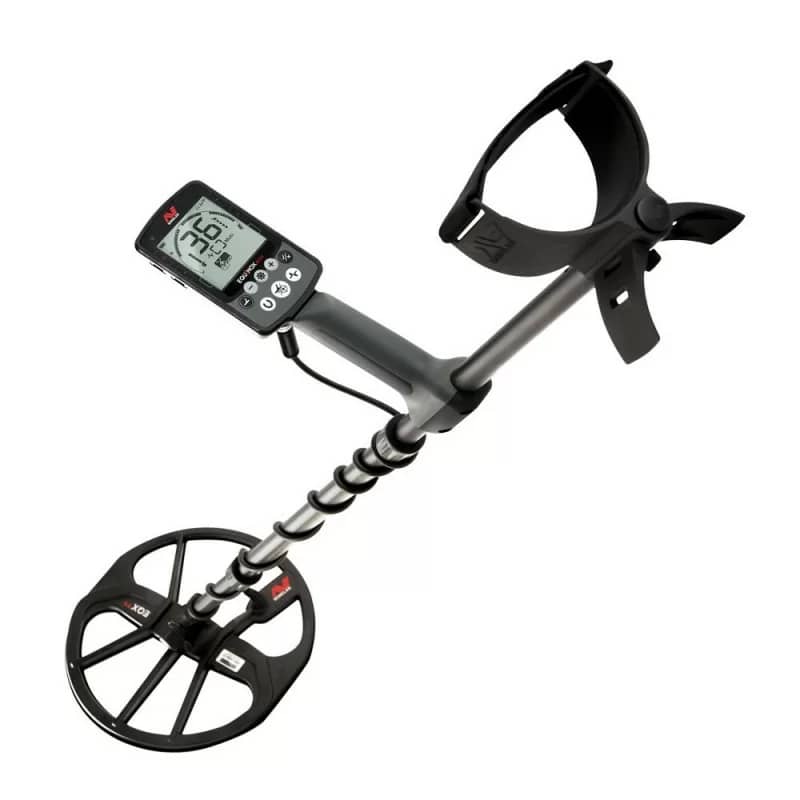

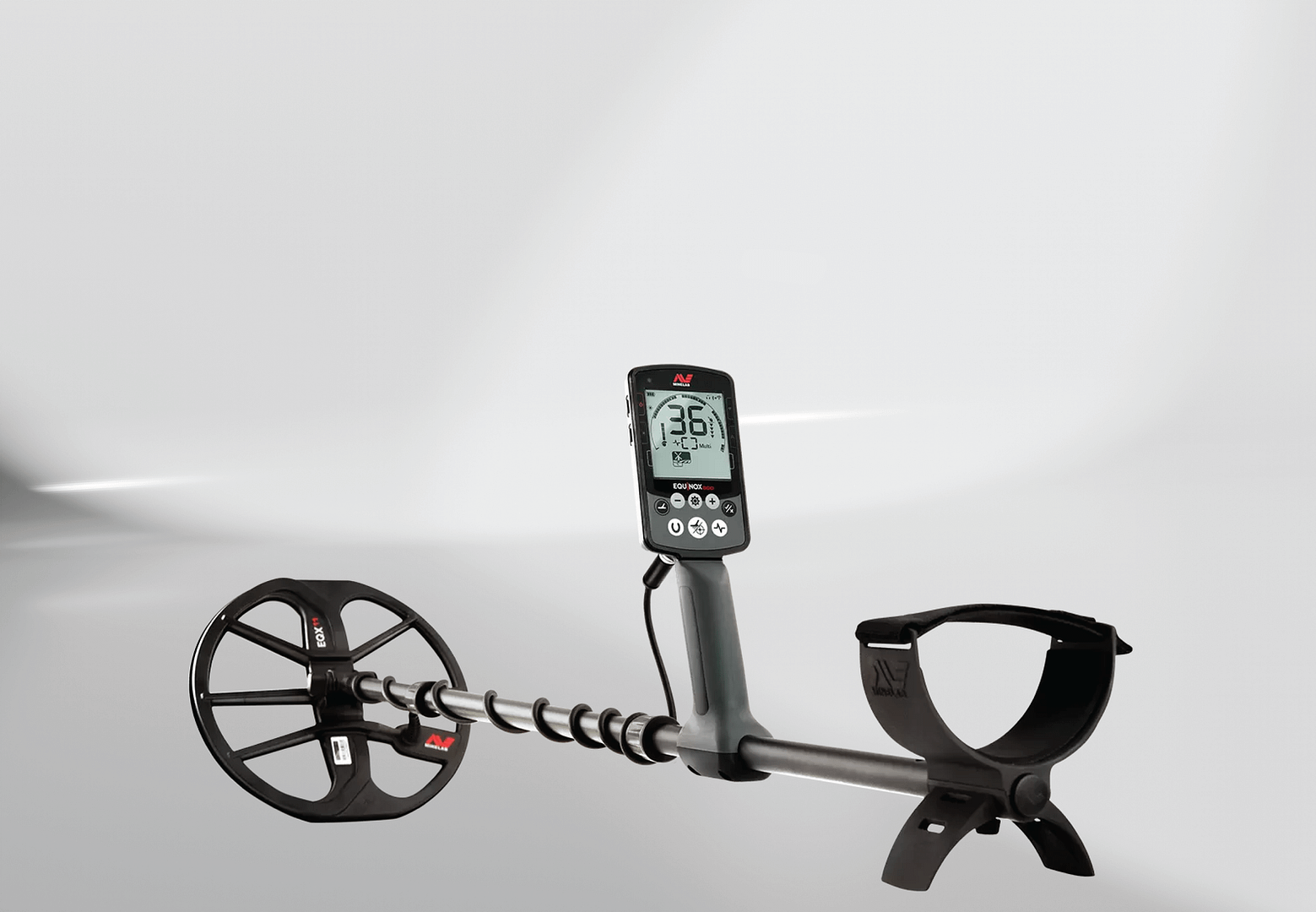

Minelab EQUINOX 800 Metal Detector
The Minelab EQUINOX 800 Metal Detector offers Park, Field, Beach and Gold search modes. This metal detector is waterproof to 3 metres according to Minelab, subject to proper seals and care.
The Minelab EQUINOX 800 Metal Detector combines Multi-IQ with selectable single frequencies. This metal detector gives users options for different sites, but target identification still requires a field check.
Metal Detector Multi-IQ Search
The Minelab EQUINOX 800 Metal Detector provides adjustable audio and target tones. This metal detector uses Multi-IQ to search with multiple frequencies at once, while single-frequency options can suit specific conditions.
The Minelab EQUINOX 800 Metal Detector has a dedicated Gold mode alongside Park, Field and Beach modes. The metal detector is rated waterproof to 3 metres; inspect the unit and follow Minelab’s submersion instructions before use in water.
Metal Detector Advanced Capabilities
- 1. The Power of Multi-IQ®
Why Multi-IQ? Because more performance shouldn’t mean more effort. Minelab’s proven simultaneous multiple frequency technology gives you the power of multiple detectors working for you at the same time. No switching frequencies, no second-guessing. Lower frequencies provide greater depth for larger targets, while higher frequencies are more sensitive to smaller targets. - 2. 6 Switchable Frequencies
In addition to Multi-IQ, you have the freedom to select six single frequencies (4, 5, 10, 15, 20 and 40 kHz). From deep coins and relics to small, hard-to-hit finds like fine jewelry or gold nuggets, this range lets you fine-tune exactly how your detector responds. - 3. 4 Search Modes (8 Profiles)
PARK: Great for trashy recreational areas. FIELD: Ideal for historical artifacts. BEACH: Perfect for dry/wet sand and underwater. GOLD: Excellent for detecting gold nuggets at high frequencies (20/40 kHz). Each mode has 2 custom profiles to save your favorite settings! - 4. High-Speed Wireless Audio
Experience ultra-fast wireless audio with maximum compatibility. Use traditional Bluetooth headsets, high-speed aptX™ low-latency devices, or the ultra-fast Wi-Stream-enabled WM 08 audio module (all included!).

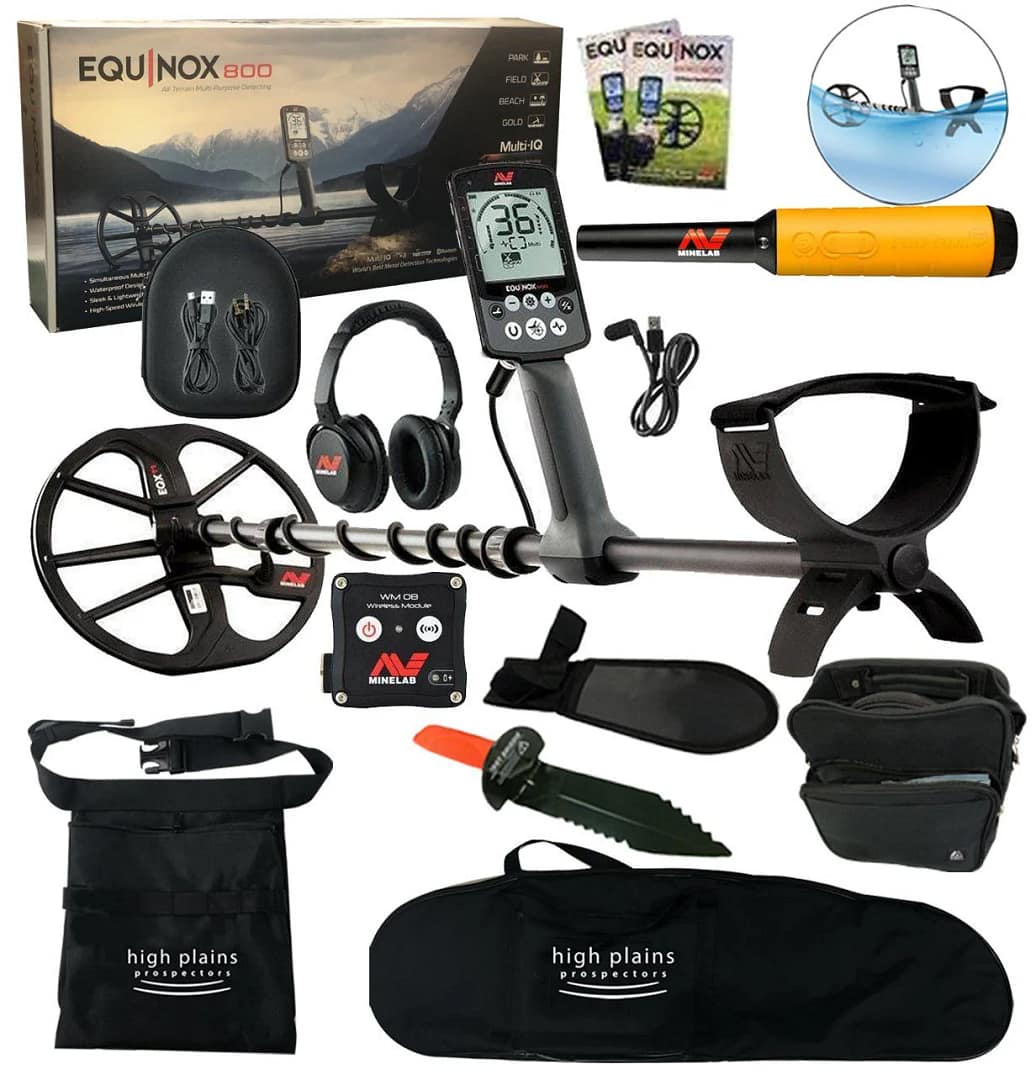

Metal Detector Package Contents
- ✔ Minelab EQUINOX 800 Metal Detector Main Unit
- ✔ EQX11 11″ Double-D Smart Coil (with bottom protection plate)
- ✔ ML 80 Bluetooth/aptX™ Wireless Headphones
- ✔ WM 08 Wireless Audio Module
- ✔ 2 x Magnetic USB Charging Cables
- ✔ Multilingual Screen Protectors & User Manual
Metal Detector Technical Specifications
| Search Modes & Frequencies | |
| Search Modes | Park 1/2, Field 1/2, Beach 1/2, Gold 1/2, All Metal |
|---|---|
| Custom Search Profiles | 8 (2 per Detection Mode) |
| Operating Frequencies | Multi-IQ®, 4 kHz, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz |
| Pinpoint Mode | Yes |
| Detection Controls & Discrimination | |
| Noise Cancel | Auto & Manual (-9 to 9) |
| Ground Balance | Auto & Manual |
| Sensitivity | 1 – 25 Levels |
| Target ID (Discrimination) | 50 Segments | Ferrous: -19 to 0 | Non-Ferrous: 1 to 40 |
| Iron Bias | 0 – 9 |
| Recovery Speed | 1 – 8 Levels |
| Audio Features | |
| Target Tones | 1, 2, 5, 50 Tones |
| Volume / Threshold | Volume: 0-25 | Threshold Level: 0-25 | Threshold Pitch: 0-25 |
| Audio Output Options | Built-In Speaker, 3.5mm Wired, Bluetooth aptX™, WM 08 Wi-Stream |
| Physical & Environmental | |
| Length | Extended: 144 cm (56.7″) | Collapsed: 112 cm (44.1″) |
| Weight | 1.34 kg (2.96 lbs) |
| Display | Monochrome LCD with Adjustable White Backlight |
| Battery & Life | 3.7 V / 5000 mAh Internal Li-ion | ~12 Hours Run Time |
| Waterproof | Submersion-Ready up to 3 m (10 ft) |
| Software Upgradable | Yes, via USB connection (Windows and OSX) |
Share This Device
Metal Detector Buyer Questions
Q: Is the Minelab EQUINOX 800 Metal Detector waterproof for metal detector use in water?
A: Minelab rates the Minelab EQUINOX 800 Metal Detector waterproof to 3 metres. The metal detector should be maintained and used within the manufacturer’s limits.
Q: Which frequencies does the Minelab EQUINOX 800 Metal Detector offer as a metal detector?
A: The Minelab EQUINOX 800 Metal Detector uses Multi-IQ and selectable 4, 5, 10, 15, 20 and 40 kHz single frequencies. This metal detector’s best setting depends on soil and target conditions.
Q: Does the Minelab EQUINOX 800 Metal Detector have a gold search mode for metal detector users?
A: Yes. The Minelab EQUINOX 800 Metal Detector includes Gold mode. This metal detector can respond to small gold targets, but no mode guarantees recovery or an exact material identification.
Q: Are wireless headphones included with the Minelab EQUINOX 800 Metal Detector as a metal detector package?
A: Minelab lists ML 80 Bluetooth headphones and a WM 08 audio module with the Minelab EQUINOX 800 Metal Detector. Confirm the actual metal detector bundle with the seller before ordering.
Q: How many search modes does the Minelab EQUINOX 800 Metal Detector offer for metal detector searches?
A: The Minelab EQUINOX 800 Metal Detector offers Park, Field, Beach and Gold modes, with two profiles per mode. This metal detector also supports a custom user search profile.
Q: How long does the Minelab EQUINOX 800 Metal Detector battery last during metal detector use?
A: The Minelab EQUINOX 800 Metal Detector contains a 5000 mAh internal lithium-ion battery. Metal detector runtime varies with audio, settings, battery condition and temperature; charge before field use.
Q: Can the Minelab EQUINOX 800 Metal Detector software be updated for metal detector users?
A: Minelab supports software updates for the Minelab EQUINOX 800 Metal Detector. Check the manufacturer’s current update instructions and compatibility before changing this metal detector’s firmware.
Q: What warranty applies to the Minelab EQUINOX 800 Metal Detector as a metal detector purchase?
A: Minelab lists three years for the control box and standard coil of the Minelab EQUINOX 800 Metal Detector. This metal detector’s warranty remains subject to the written regional terms.
Technical Specifications
| SKU | Minelab-Equinox-800 |
|---|
