Download user manual: German | English

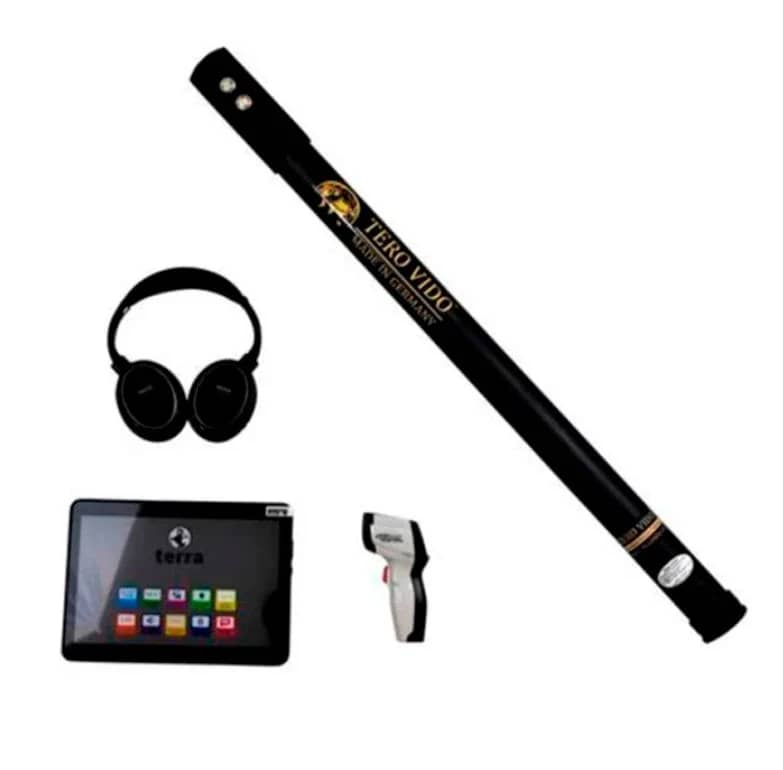

The Tero Vido 3D system is extremely simple to build and can be used by anyone after a short training period. It consists of the inconspicuous and lightweight ground scanner and a laptop (tablet).
No cables or heavy batteries hinder the work with the machine.
The user scans the ground with the sensor and the scan results are displayed in real time on the computer screen. Immediately after the measurement process is completed, the results can be analyzed in the software.
The data will be saved on the computer and can be retrieved when necessary. The storage capacity as well as the size of the measurement field are almost unlimited.
High-resolution graphics, one of the best and most detailed analyses on the market, together with the many setting options in the software make it easy to quickly detect the metal or void and determine its depth and size.
The system provides repeatable results and a scan check will confirm the measurement result.
You can also use the Tero Vido 3D system for metal discrimination and see if your find is made of ferromagnetic metals or non-ferromagnetic precious metals. The Tero Vido 3D system is an all-purpose device and can be used in any ground condition whether it is sandy, rocky or clayey.
Small metal anomalies in soils with high mineral content can be filtered out with the software.

Technical Data
 Tablet with pre-installed Tero Vido 3D software
 Sensor………………………….. Vertical, 85 cm
 USB-Dongle for data exchange between sensor and computer
 Charging cable and adapter for USB …………………… 12 V DC and 220 V AC
 Manual and quick start guide
 Flexible carrying case with sensitive touch screen protection.
 Carrying bag for the sensor
 Headphones (Bluetooth/WiFi)

Detectors

  Sensors……………………………. 3-axis digital sensors

Built-in rechargeable battery

 Type…………………………………………. Rechargeable LiPo battery
 Performance………………………………………… parameters 800 mAh 4.2V
 Internal…………………………… operating voltage 3.0V
 Battery………………………………………… operating time 15h
 Charging………………………………………….. 1 hour with the main adapter, 4 hours with the car charger

Charger

 Input voltage………………………………………….. 240/110 V or 12 V (car charger)
 Charging current……………………………. 5 V/ 500 mA max.

Measurement and weight of the detectors
Specification
 Length
 Diameter
 Weight
Horizontal sensor 100
 100cm.
 5cm.
 1.2 kg
Horizontal sensor 50
 50cm.
 5cm.
 0.5 kg
Vertical sensor
 85cm.
 5cm.
 0.8 kg
 IP protection class ………………………….. IP 54 (waterproof)
 Storage temperature ………………… -20° to + 60°C
 Operating temperature …………… -10° to + 50°C
 Relative humidity ………………………….. 5-95%, (no fog)
 Notifications…………………………………………. Multi-colored LEDs
USB radio module for data upload

 Frequency band ………………………………. 2.4 GHz ISM band
 Channels…………………………………………. 126 RF channels
 Transmission rate (air) ………………………………. 2mbps
 Programmable output ………………………………. 0. -6, -12 or -18 dBm
 Sensitivity ………………………. -82 dBm Sensitivity at 2 Mbps

Processor

 Microcontroller……………………………… 8-bit RISC-based microcontroller
 Maximum operating frequency …………………………… 16 MHz
 1KB SRAM, 512K EEPROM
 10-bit A/D converter

Data transfer (Bluetooth)
 Frequency range …………………………… 2.5 – 2.4835 GHz
 Maximum transfer rate ……………………………. 1 Mbps
 Receiver sensitivity …………………… -85 dBm
 Maximum range in the open air …………………………. Approximately 10 m

Technical requirements for the computer

o Operating system ………………………………. Windows 8.1. or newer
o Disk drive……………………………… CD-ROM drive. alternatively: download software from the company website
o USB……………………………… USB 2.0 or higher
o Bluetooth…………………………….. For headphones
o Processor speed ……………………………… 1 GHz
o Working memory ……………………………. 1 GB RAM
o Disk capacity ……………………………. Hard disk 250 MB
o Graphics card ……………………………… DirectX9 compatible

Certificates & Warranty
Technical certificates and a 2-year warranty are provided for all Tero Vido 3D System ground scanning devices. Before the goods leave our company, they are thoroughly checked by our engineers. This, as well as intensive field tests and continuous improvements ensure that we consistently provide high quality and always one of the most professional available on the market.

We deliver tax-free to private and professional customers in countries outside the EU. Ask about options and offers! We will help you find the best detector for your needs!
